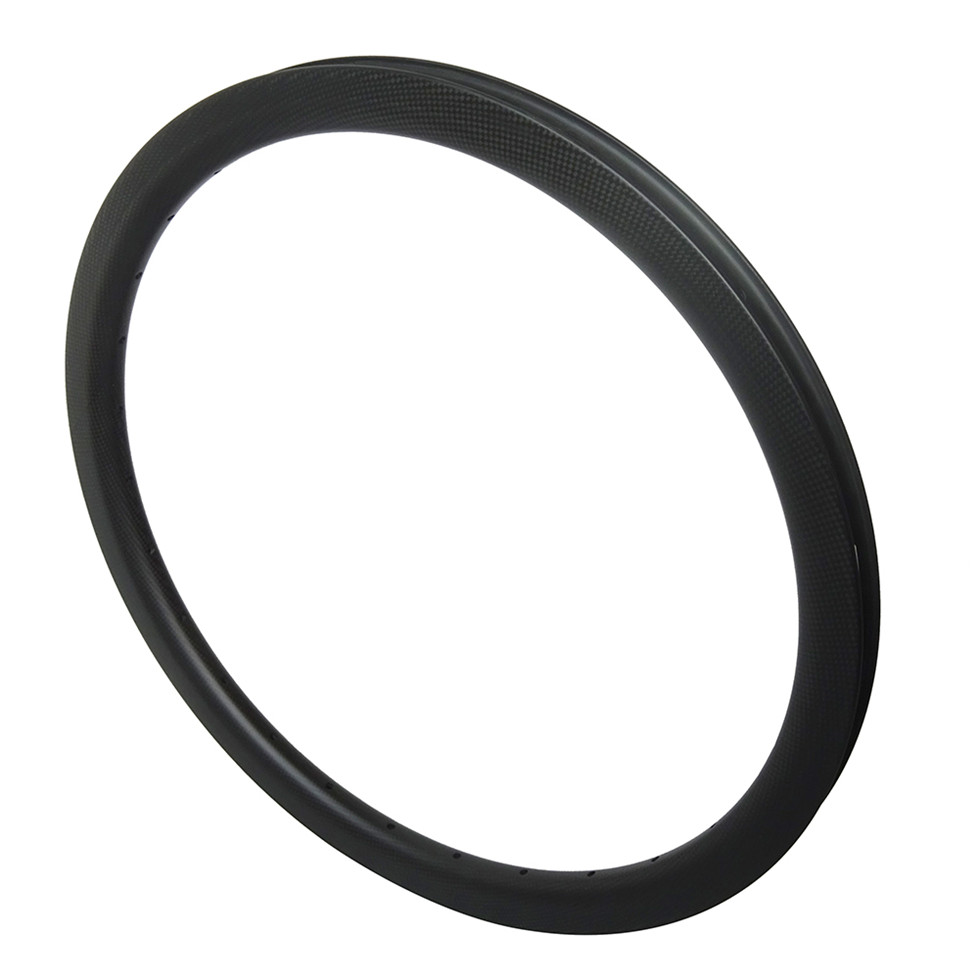

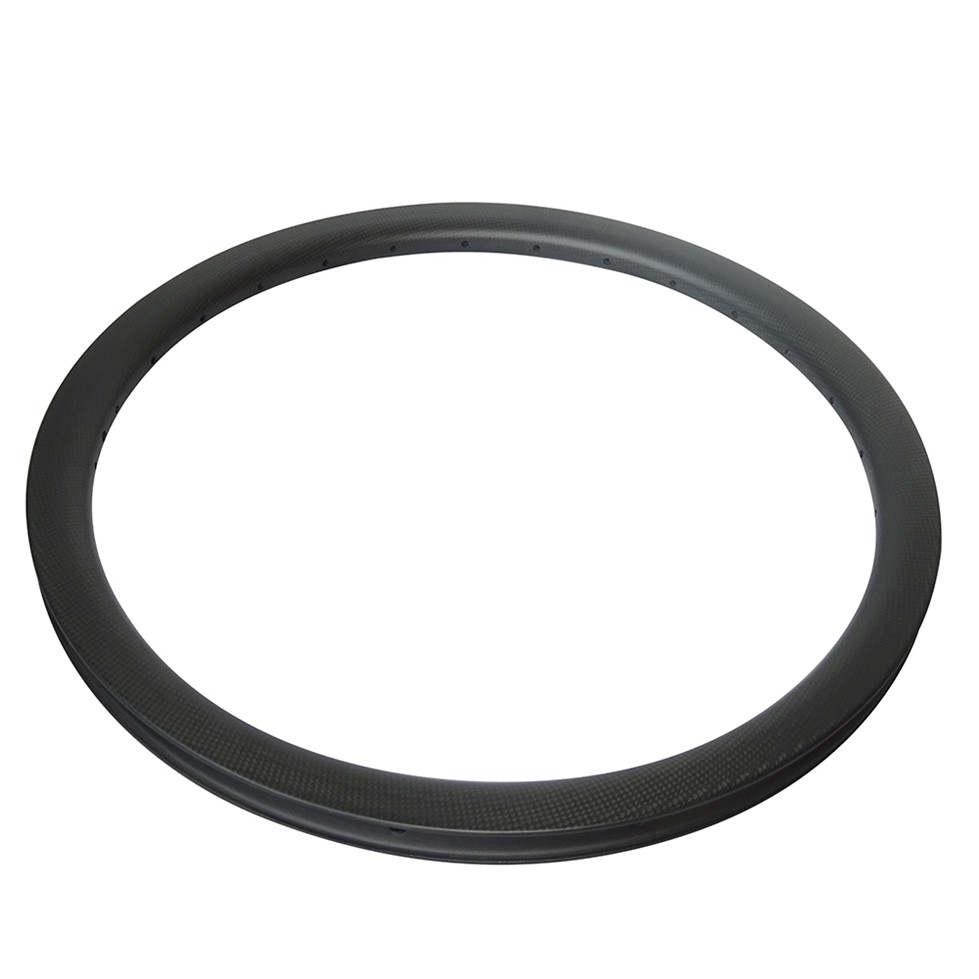

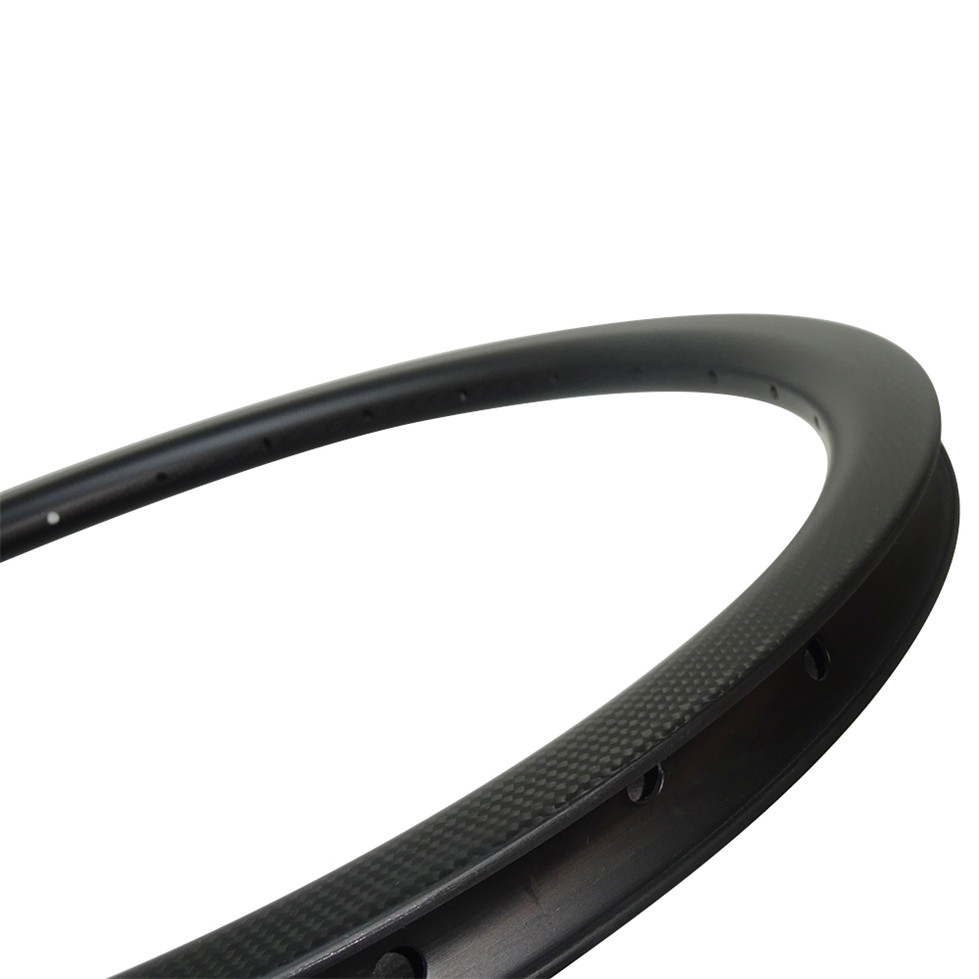

Carbon Fiber 16" 349 25mm Width 38mm Depth BMX Clincher Rim |
| |
Model : TR349-3825C |
|
Size:16 inch /BSD 349 |
| |
Rims type : Clincher |
|
ERD: 292 mm |
| |
Material : carbon fibers |
|
Width: 38 mm |
| |
Warranty : 2 Years |
|
Depth : 25 mm |
| |
Spoke Hole Dia.:4.5mm |
|
Weight : 280 +/- 15 gr |
| |
Valve Hole Dia.: 6.5mm (Presta) |
|
Assembly Hole Dia.: 7.5mm |
| |
Rim Lip Thickness: 2.5mm |
|
Hole count: 18,20,24, 28, 32,36 |
| |
Weave : ud / 3k / 12k |
|
Application: Road or BMX bike |
| |
Tire Size: 1.7" ~ 2.15" |
|
Max Spoke Tension: 130kgf |
| |
Weight Limit: 100kg |
|
Max Tire Pressure: 60 psi |
| |
|
|
|
 |
| Customs brand design with black glossy sticker |
 |
| Front Disc Braking Surface |
 |
| Pro Clincher tire with drive side 36 holes in 3k matte |
 |
| 3k carbon fiber disk brake |
|
| |
|
|
|
| |
Characteristics : |
|
|
| |
1. This rim is use for mini road bike wheels or BMX bike version. |
|
4.In normal , The rims without logo . But we can painting your own logo . |
| |
2 .Braking surface with High TG , keep safe. |
|
5.Through revisions in each step of the manufacturing process, we were able to |
| |
3.Road bike have the different weight with Road bike rims . |
|
produce a strong, light and competitive rim. |
| |
|
|
|
