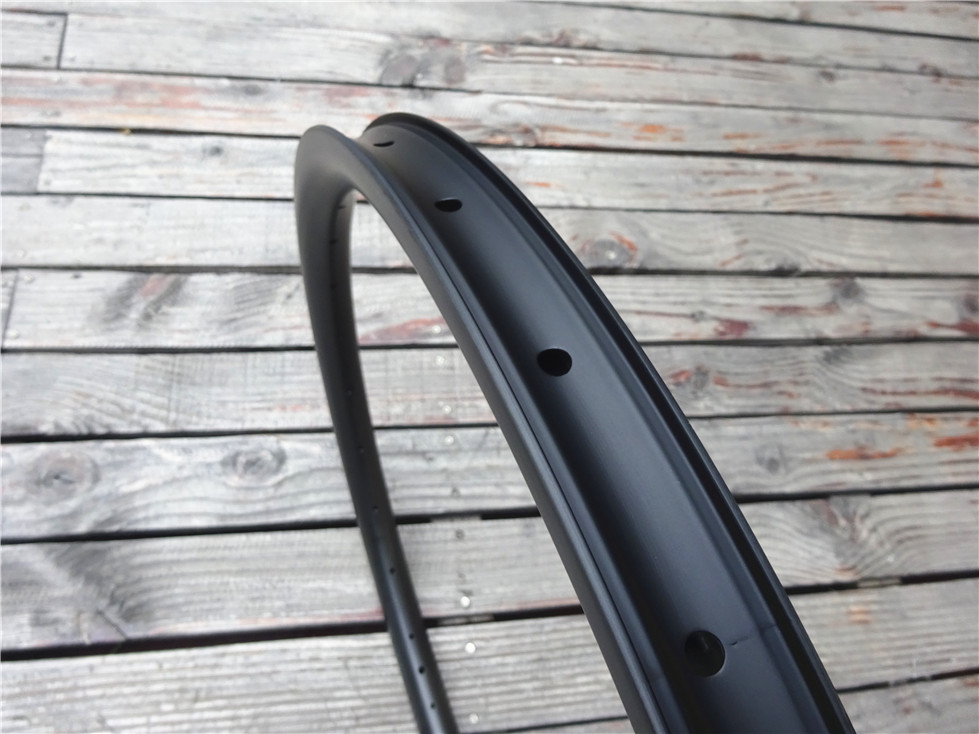

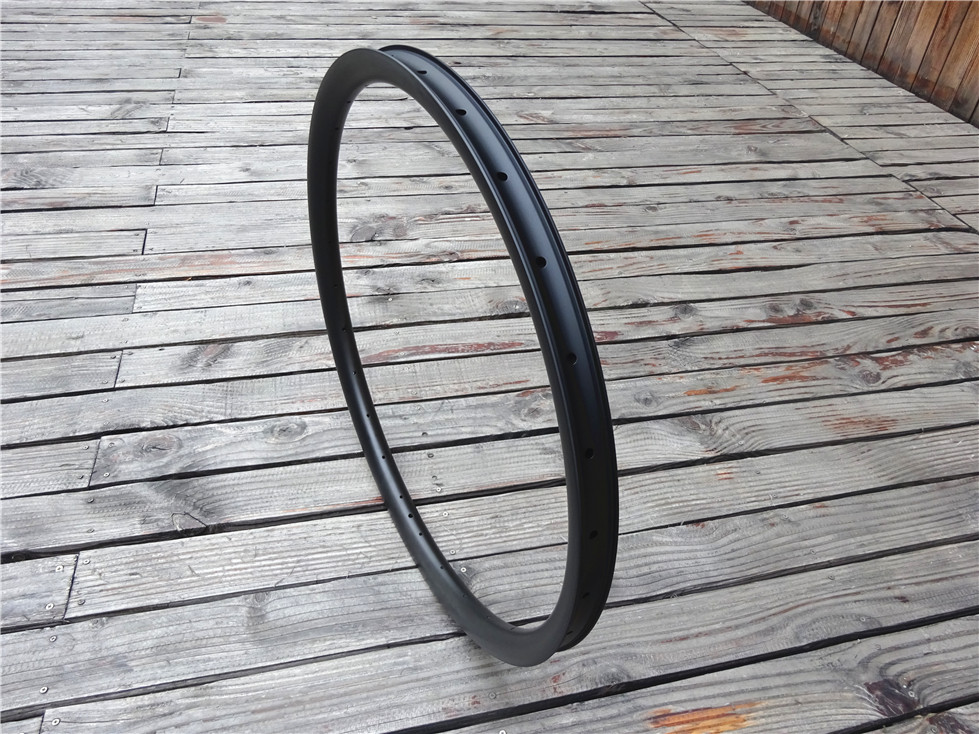

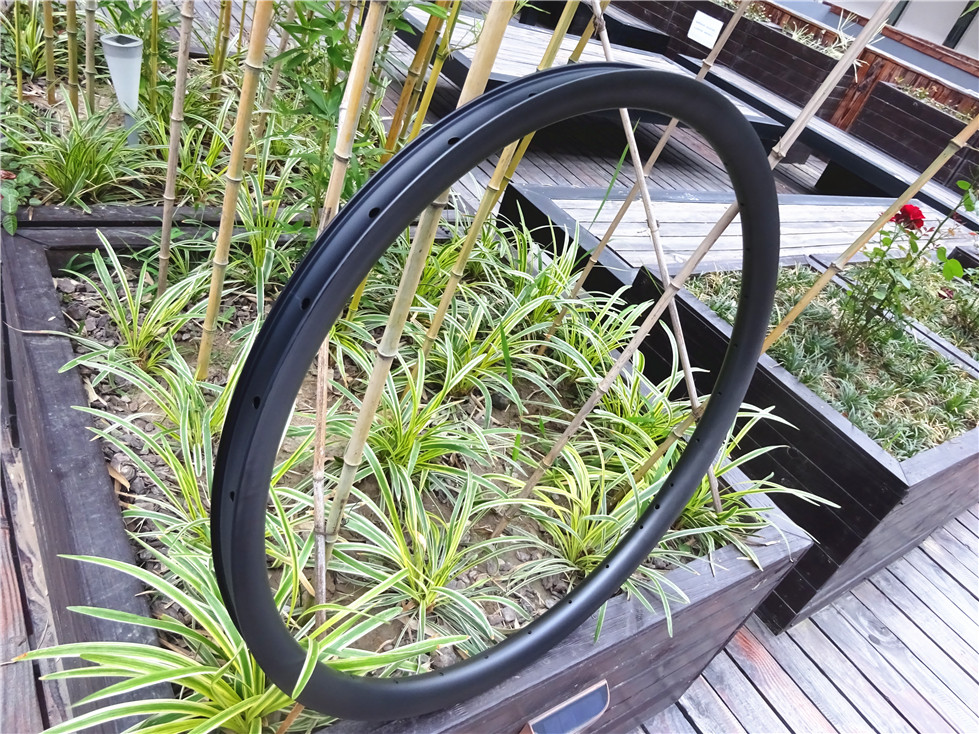

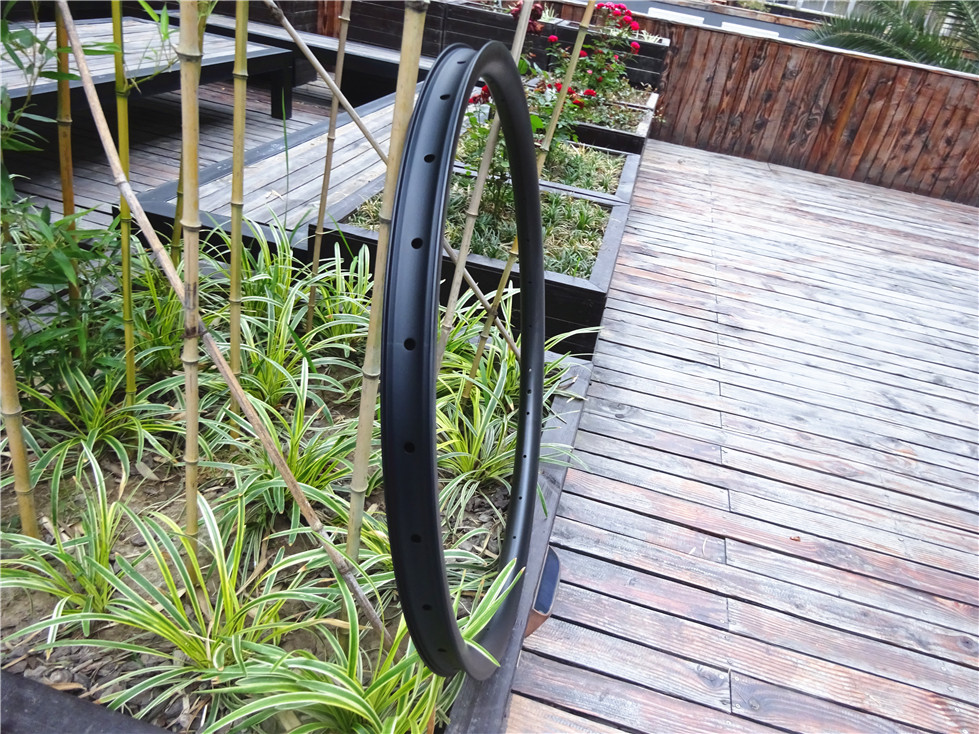

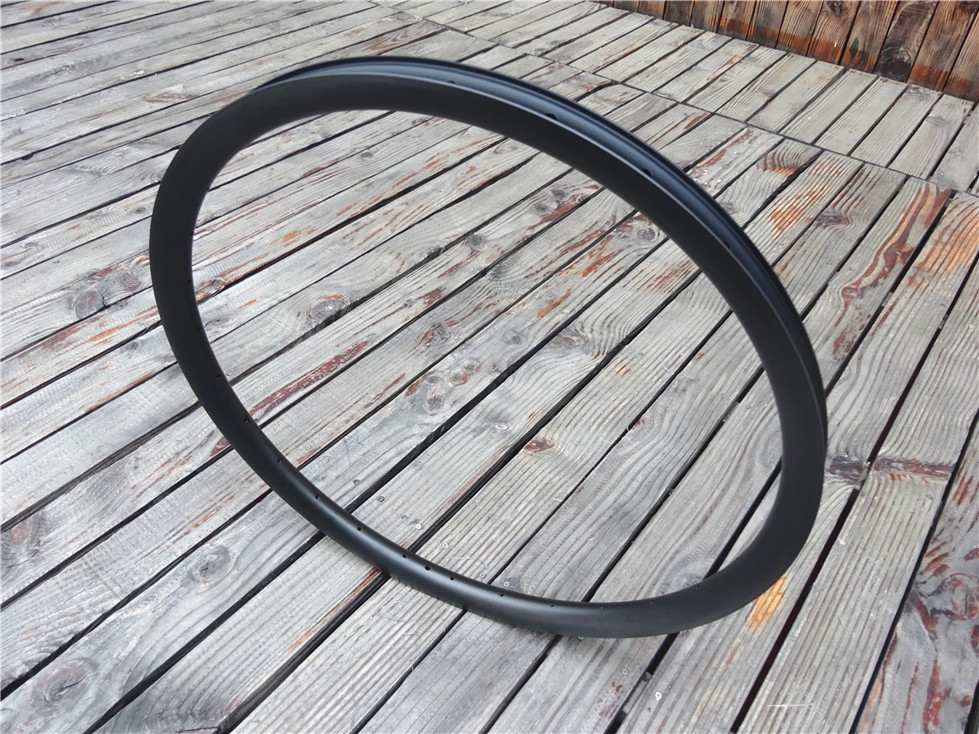

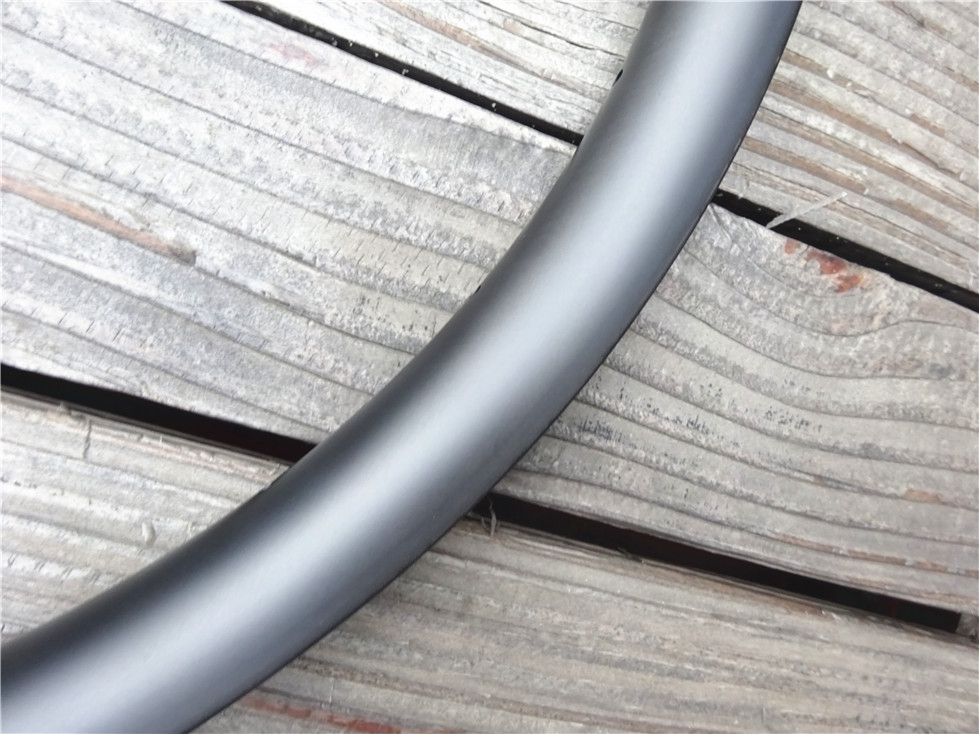

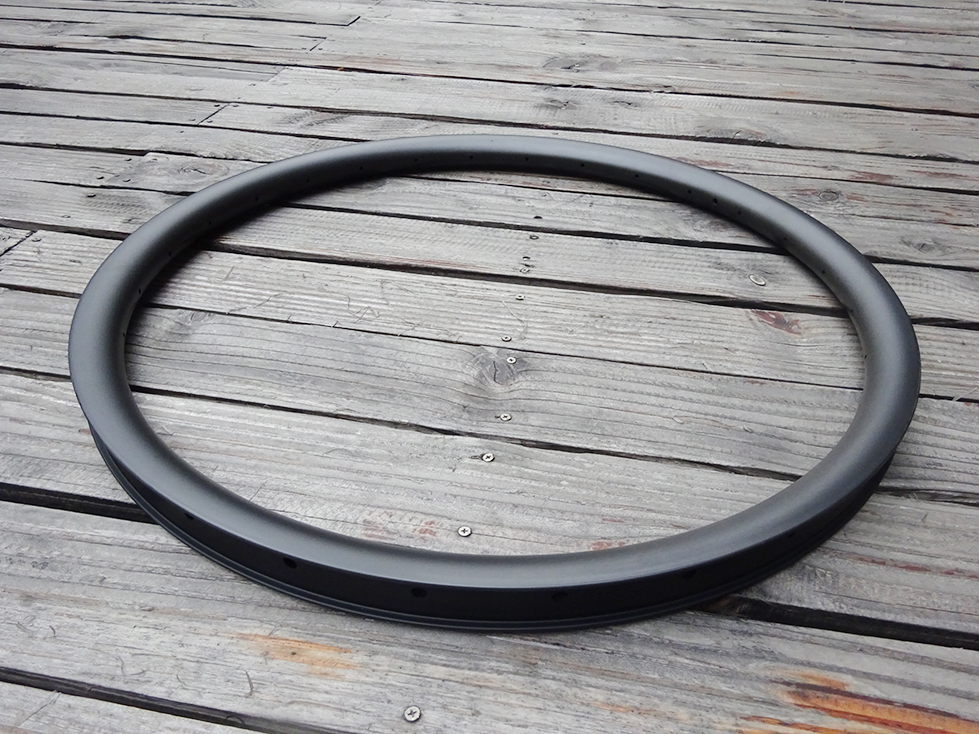

TMC936 symmetrical rim profile carbon 29er carbon rims mtb |
|
|
| |
Model : TMC936 |
|
Size:29 inch |
| |
Rims type : Clincher / Tubeless |
|
ERD: 578 mm (not including nipple head dimension) |
| |
Material : T800 + T700 carbon fibers |
|
Width: 36mm |
| |
Warranty : 1 Years |
|
Depth : 30 mm |
| |
Spoke Hole Dia.: 2.3mm, 4.5mm |
|
Weight : Standard 450+/-15gr,Flyweight 390+/-15gr |
| |
Valve Hole Dia.: 6.5mm (Presta) |
|
Assembly Hole Dia.: 7.5mm |
| |
Rim Lip Thickness: 2.5mm |
|
Hole count: 18,20,24, 28, 32,36 |
| |
Weave : ud / 3k / 12k |
|
Application: Enduro |
| |
Tire Size: 2.0" ~ 2.55" |
|
Max Spoke Tension: 130kgf |
| |
Weight Limit: 100kg |
|
Max Tire Pressure: 60 psi |
| |
|
|
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
|
|
|
| |
Characteristics : |
|
|
| |
1. This rim is mtb symmetrical version. |
|
4.In normal , the rims without logo . But we can painting your own logo . |
| |
2 .This model have have Standard weight and Flyweight 2 version. |
|
5.TMC936 30mm internal width, making it suited to the tire in 2.0" ~ 2.55" |
| |
3.xc used ,Reduce weight without affecting performance. |
|
6.This rim is designed to be compatible with mid-drive e-bikes. |
| |
|
|
|
