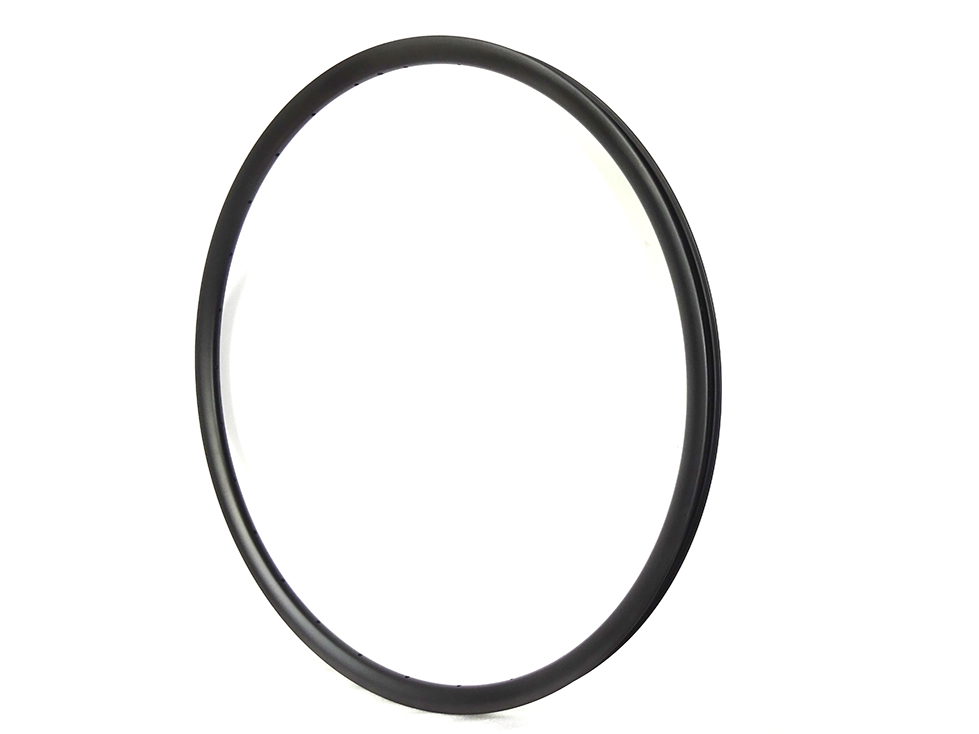

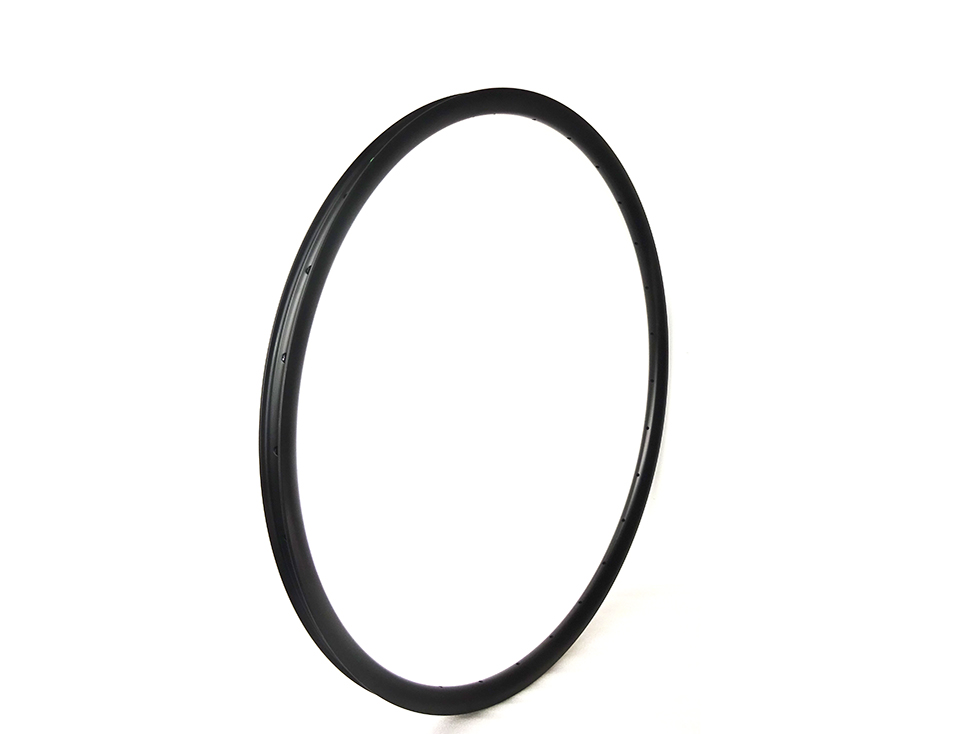

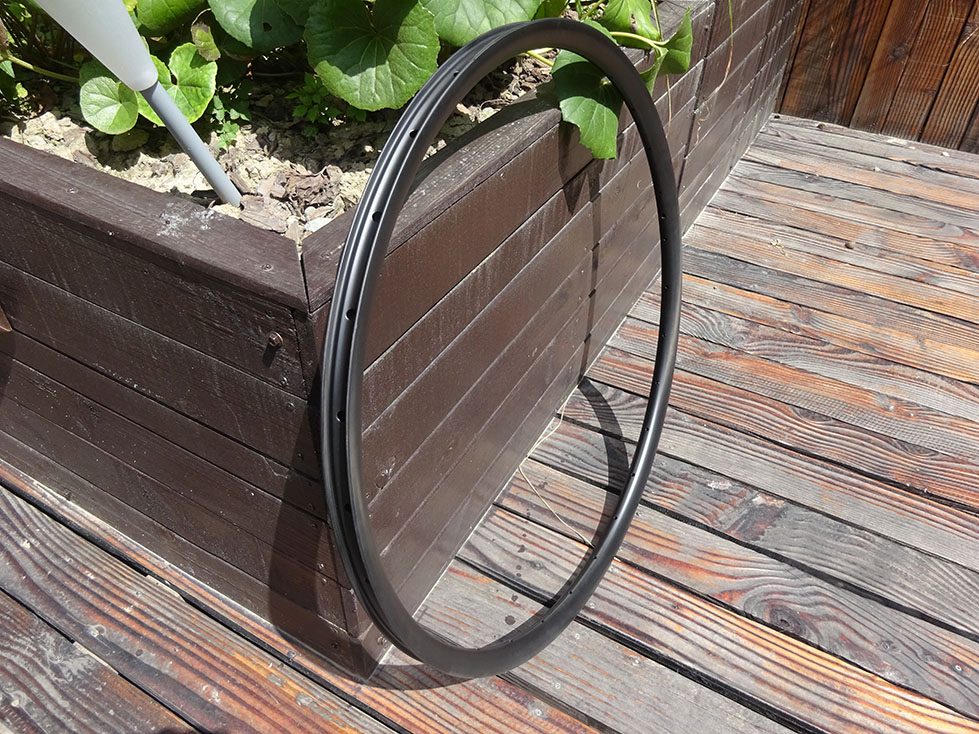

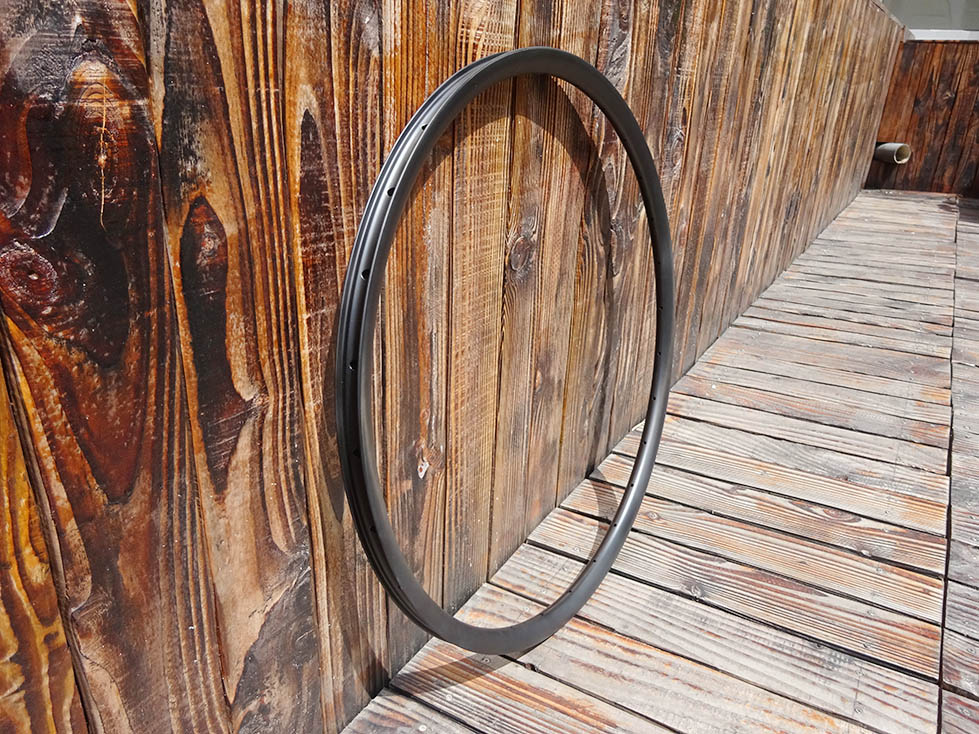

27mm wide 23mm depth carbon 29er mountain bike wheels clincher rim TMC923 |
| |
Model : TME923 |
|
Size:29 inch |
| |
Rims type : Clincher / Tubeless |
|
ERD: 593.6 mm |
| |
Material : T800 + T700 carbon fibers |
|
Width: 30 mm |
| |
Warranty : 2 Years |
|
Depth : 25 mm |
| |
Spoke Hole Dia.:4.5mm |
|
Weight : Standard 360 +/- 15 gr, Flyweight 270+/- 15gr |
| |
Valve Hole Dia.: 6.5mm (Presta) |
|
Assembly Hole Dia.: 7.5mm |
| |
Rim Lip Thickness: 2.5mm |
|
Hole count: 18,20,24, 28, 32,36 |
| |
Weave : ud / 3k / 12k |
|
Application: XC |
| |
Tire Size: 1.7" ~ 2.15" |
|
Max Spoke Tension: 130kgf |
| |
Weight Limit: 100kg |
|
Max Tire Pressure: 60 psi |
| |
|
|
|
 |

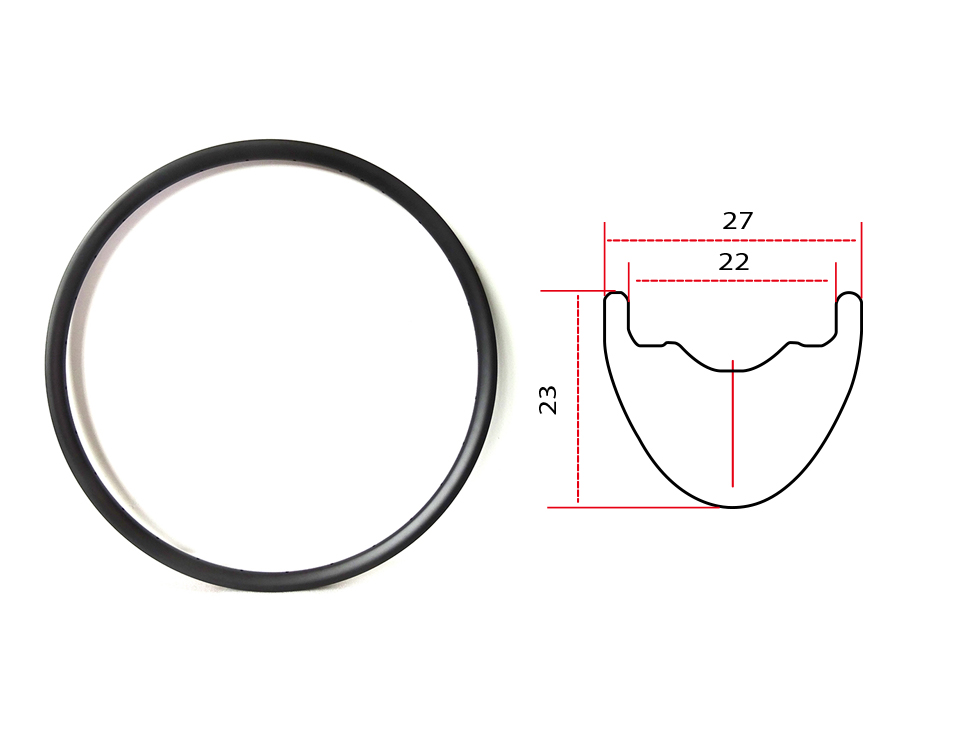

| Carbon 29er mountain bike rims tme9325 Geometry |
 |
| UD Carbon Fiber Matte finish 28 holes |
 |
| Clincher and Tubeless compatible |
 |
| Hook less carbon mtb rim |
 |
| |
|
|
|
| |
Characteristics : |
|
|
| |
1. This rim is mtb asymmetric version. |
|
4.In normal , the rims without logo . But we can painting your own logo . |
| |
2 .This model have have kevlar fiber |
|
5.Through revisions in each step of the manufacturing process, we were able to |
| |
3.xc used ,Reduce weight without affecting performance. |
|
produce a strong, light and competitive rim. |
| |
|
|
|
