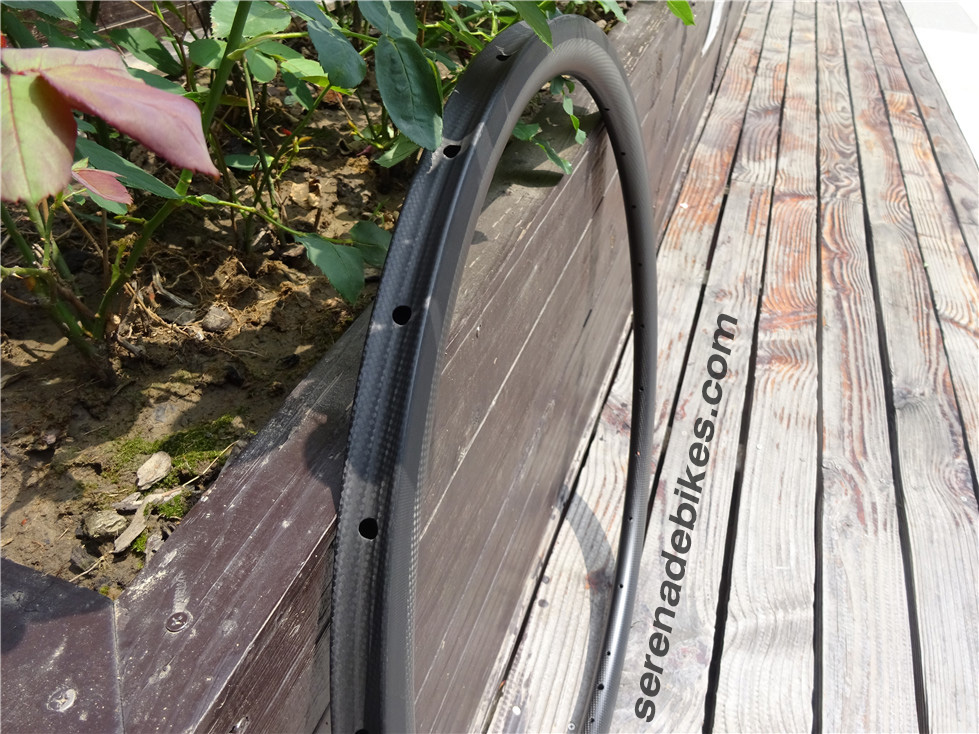

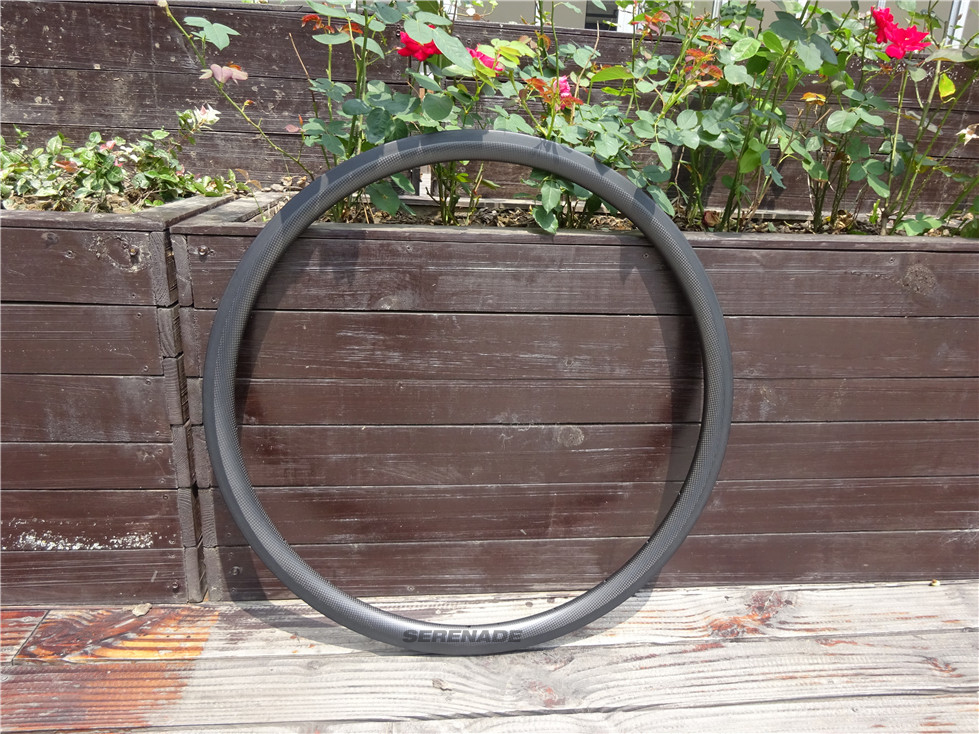

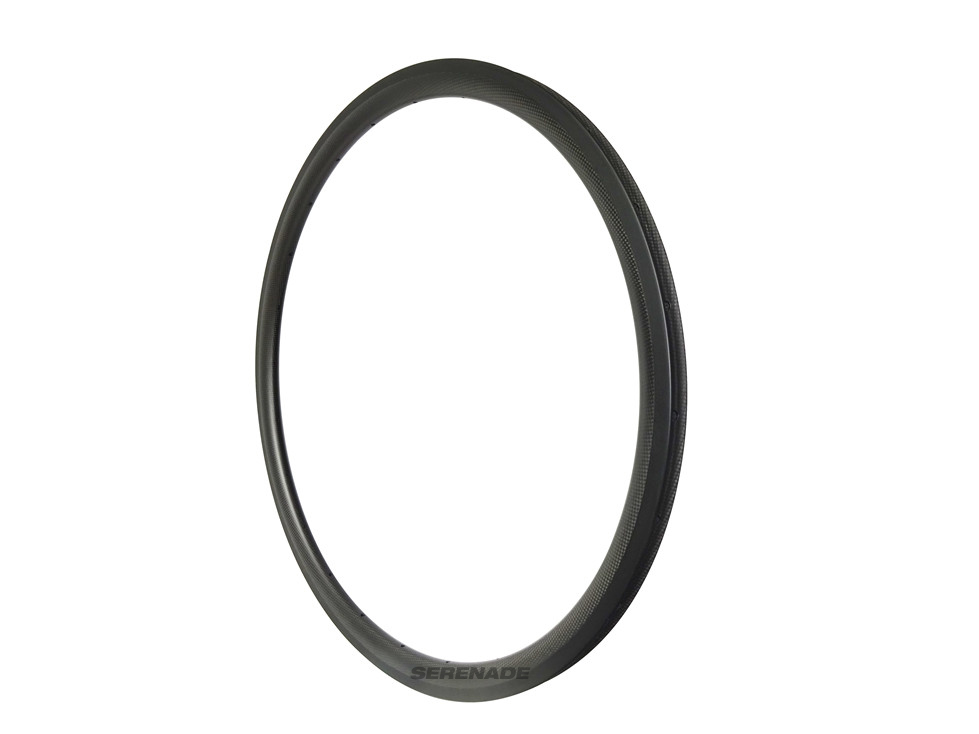

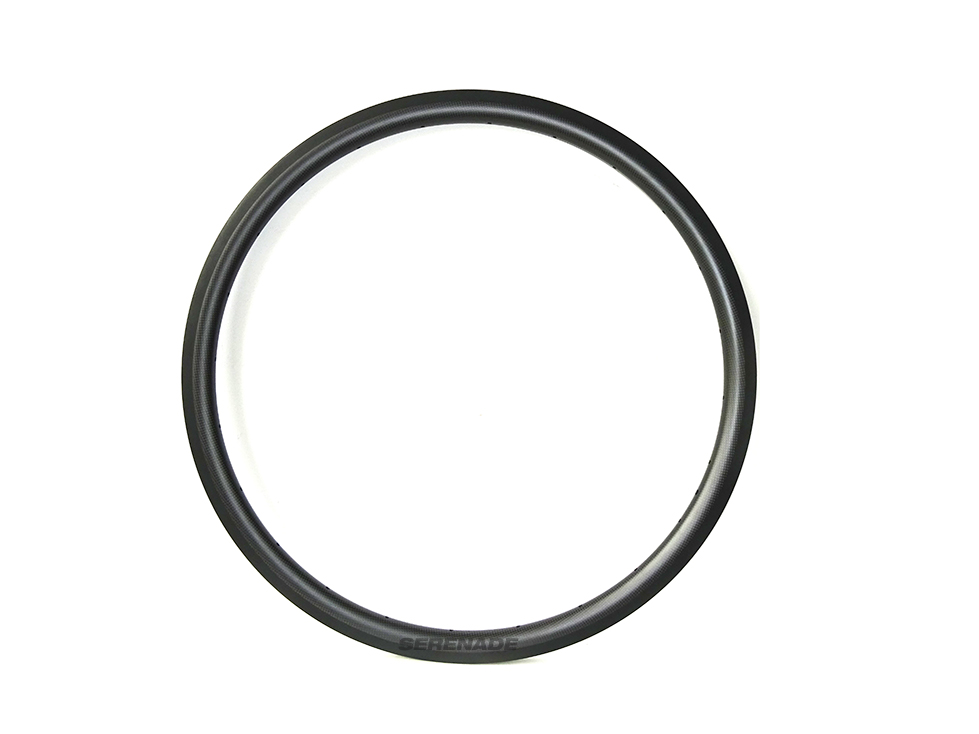

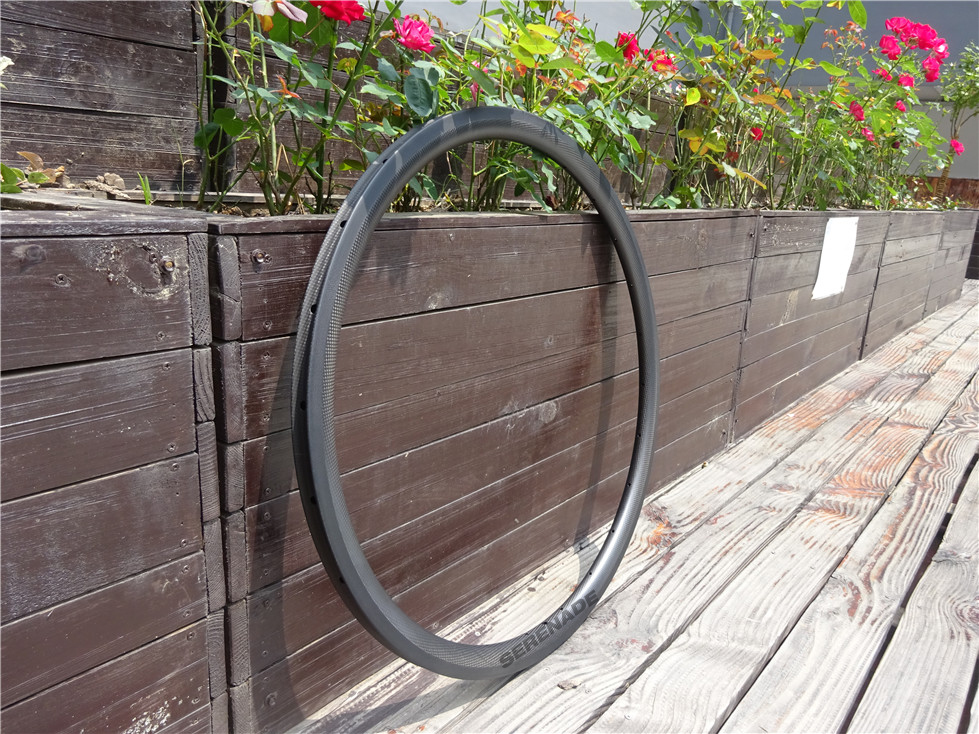

33mm depth 25mm wide carbon road bicycle rims for road bike wheels |
| |
Model : TRU33T |
|
Size:700C |
| |
Rims type : Tubular |
|
ERD: 551.6 mm |
| |
Material : Toray T700 carbon fibers |
|
Width: 25 mm |
| |
Warranty : 1 Years |
|
Depth : 30 mm |
| |
Spoke Hole Dia.: 4.5mm |
|
Weight : 360 +/-15 gr |
| |
Valve Hole Dia.: 6.5mm (Presta) |
|
Assembly Hole Dia.: 7.5mm |
| |
Rim Lip Thickness: 2.5mm |
|
Hole count: 18,20,24, 28, 32,36 |
| |
Weave : ud / 3k / 12k |
|
Application: Road/CX |
| |
Tire Size:
21C-38C recommended |
|
Max Spoke Tension: 130kgf |
| |
Weight Limit: 120kg |
|
Max Tyre Pressure: 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear |
| |
|
|
|
 |
| 3K Carbon fiber Matte finish |
 |
| Basalt brake , we can offer disc brake type |
 |
| |
 |
| |
 |
| |
|
|
|
| |
Characteristics : |
|
|
| |
1. Tubular tire , Use for Road or CX bike wheel |
|
4.In normal , the rims without logo . But we can painting your own logo . |
| |
2 .oming in at only 360g per rim. |
|
5.Through revisions in each step of the manufacturing process, we were able to produce a strong, light and competitive rim. |
| |
3.Reduce weight without affecting performance.used high TG resin. |
|
| |
|
|
|
