30mm internal wavy carbon mountain bicycle wheels strong XC XCO wheelset

30mm Internal Wavy Carbon MTB Wheelset | XCO Race Performance

Product Overview

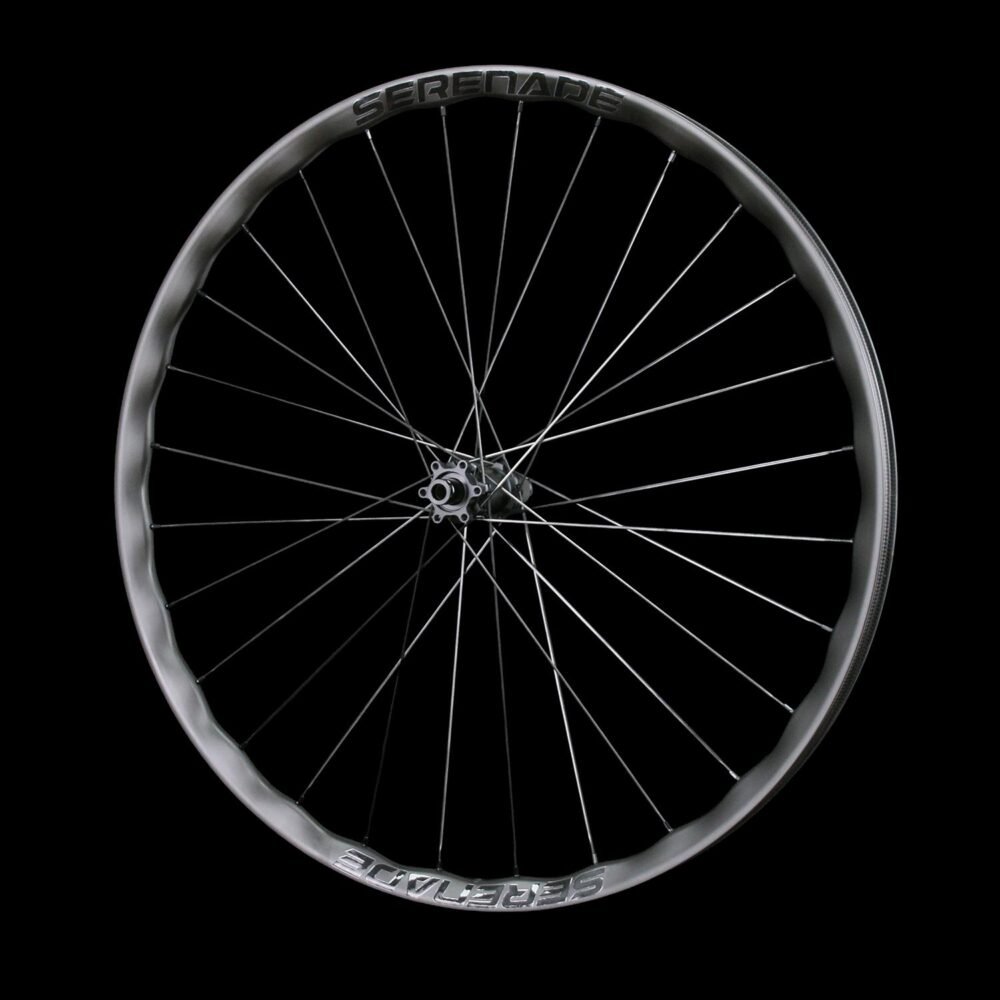

Unleash peak trail performance with the Serenade 30mm Internal Wavy Carbon MTB Wheelset, engineered specifically for modern Cross-Country (XCO) and Marathon racing. Featuring an innovative wave rim profile (25mm depth / 21mm trough) and an expansive 36mm external width, this carbon mountain bike wheelset delivers optimal tire support, explosive acceleration, and exceptional compliance on technical descents.

Weighing as little as 1,240g (±30g), this ultra-lightweight carbon wheelset pairs our high-modulus carbon rims with precision-built Serenade M320 Boost hubs, delivering pro-level quality and reliability at an unmatchable value.

Key Features & Performance Highlights

• Advanced Wave Engineering: Undulating rim profile optimizes spoke tension, absorbs trail vibrations, and improves strength-to-weight ratio.

• 30mm Internal Wide Bed: Designed for 29″ x 2.1″–2.4″ tires, allowing lower air pressure for maximum traction and cornering confidence.

• High-Modulus Carbon Construction: Crafted from premium Toray T700 + T800 carbon fiber with a sleek UD finish and hookless tubeless-ready profile.

• Instant Power Transfer: Serenade M320 Boost hubs equipped with a 36T ratchet system offer rapid engagement on steep technical climbs.

Technical Specifications

Rims

• Model: TMC25W 29er Wavy MTB Carbon Rim

• Profile: Hookless / Tubeless-Ready

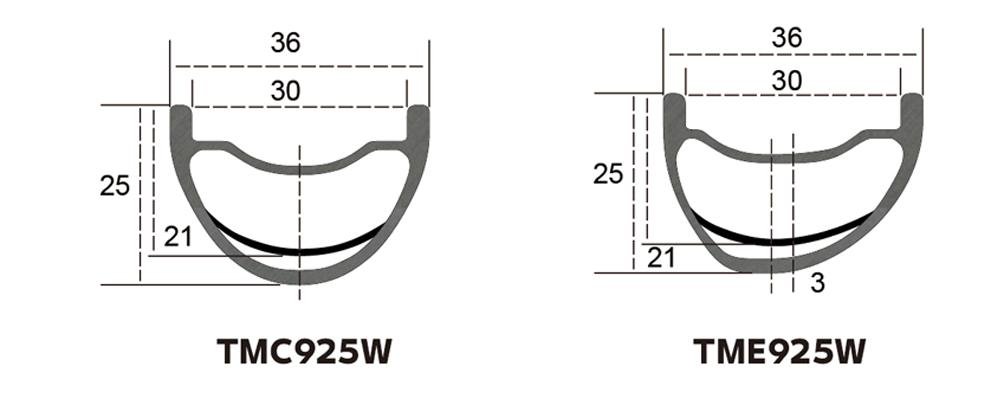

• Dimensions: 30mm Internal Width | 36mm External Width | 25mm Crest / 21mm Trough Depth

• Material: Toray T700 + T800 Carbon Fiber

• Weave/Finish: UD

• Wheel Size: 29″ (Tire compatibility: 2.1″–2.4″)

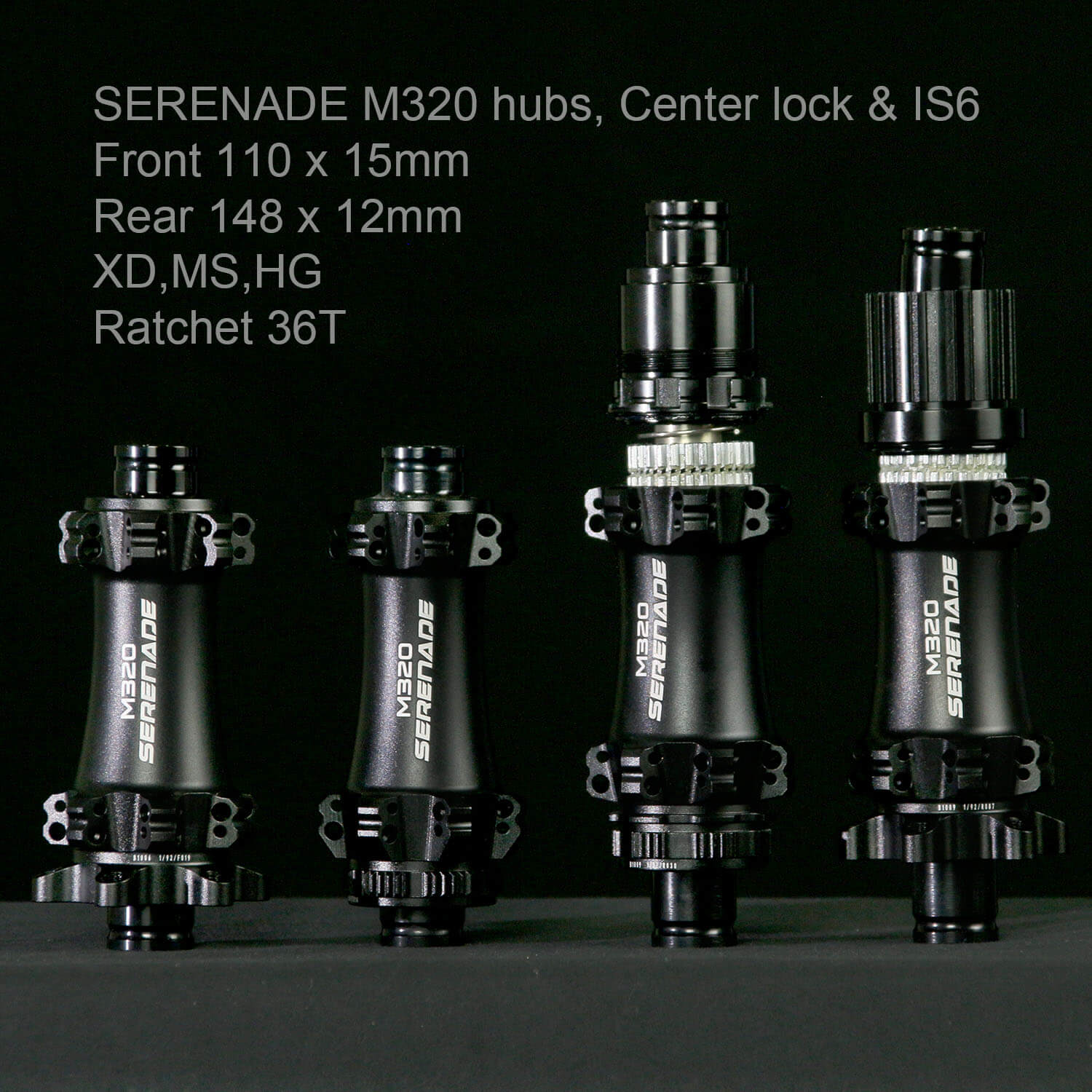

Hubs

• Model: Serenadebikes M320 Boost

• Hole Count: 28H (Front / Rear)

• Spacing: Front 110 x 15mm | Rear 148 x 12mm

• Brake Mount: 6-Bolt or Center Lock

• Freehub Body: Shimano HG / Micro Spline / SRAM XD

• Ratchet System: 36T

• Hub Weight: 320g / pair

Spokes & Lacing

• Lacing Pattern: 2-Cross (Front & Rear)

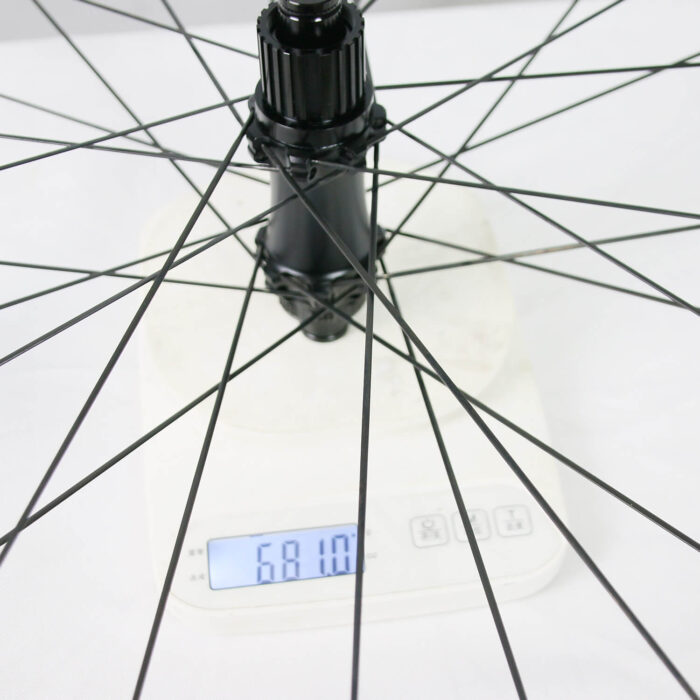

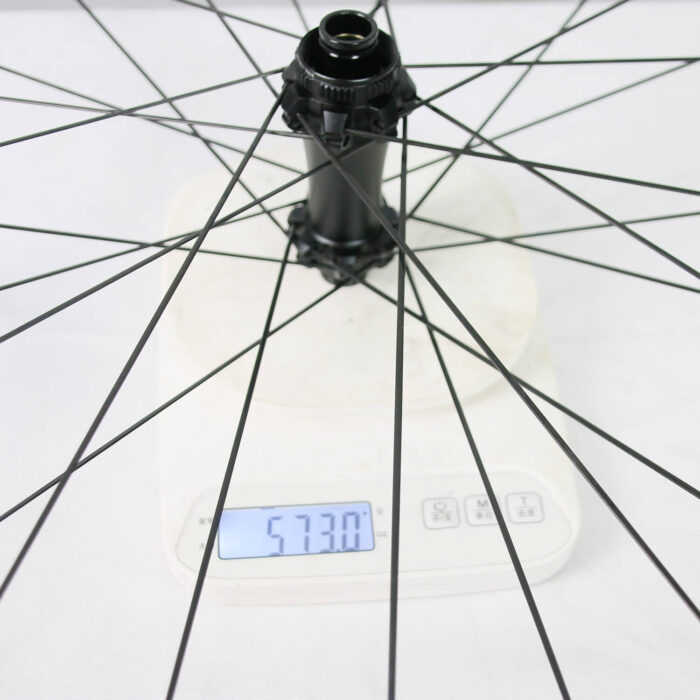

• Spoke Options & Total Weight Configs:

  • Pillar 1420 (Ultra-Light Bladed): ~1,240g ± 30g

  • Sapim CX-Ray (Pro Aero Bladed): ~1,246g ± 30g

  • Sapim Sprint (Durable Double-Butted): ~1,280g ± 30g

What’s Included in the Box

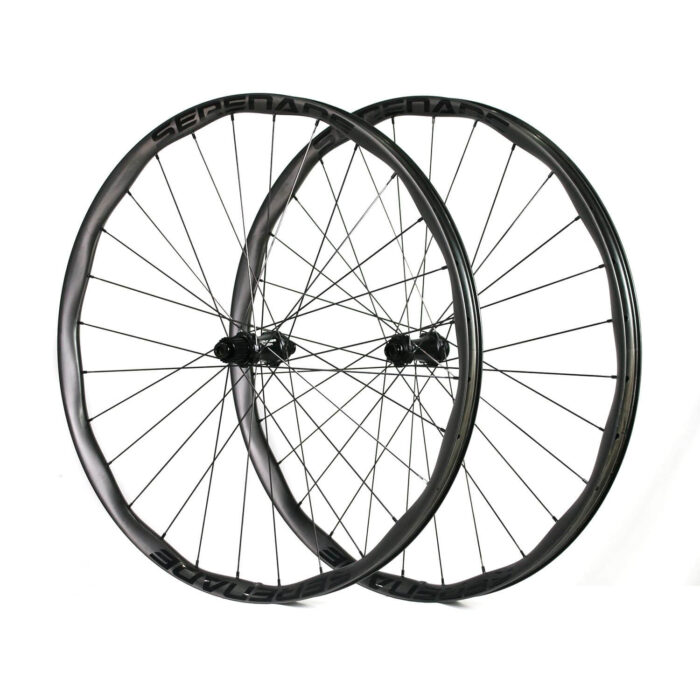

• 1 x Front & Rear Carbon Wavy MTB Wheelset

• Tubeless Rim Tape (Pre-installed)

• Alloy Tubeless Valves

• 2 x Spare Spokes & Nipples
