80mm Carbon Disc Wheelset – UD Paintless Matt (T700/T800) – Road/TT
Price range: $459.00 through $549.00
Chase the Clock, Not the Peloton
The wind is either your greatest enemy or your strongest ally. It’s time to choose.
For the time-trialist and the breakaway specialist, speed isn’t just a number—it’s a feeling. It’s the sound of the air rushing past an 80mm deep-section rim; it’s the way your bike maintains momentum on a flat stretch of tarmac as if it has a motor of its own.
Our new 80mm Carbon Disc Wheelset was designed for those moments when every watt counts. By utilizing a sophisticated blend of T700 and T800 carbon fiber, we’ve created a rim that is incredibly stiff for those out-of-the-saddle sprints, yet surprisingly composed in crosswinds thanks to our signature U-V shape profile.
We’ve moved away from the “skinny tire” era. With an inner width of up to 23mm, these wheels are optimized for 28mm to 40mm tires. This means you can run lower pressures for a smoother ride and better grip without sacrificing an ounce of aerodynamic efficiency. The UD paintless matte finish isn’t just about weight saving; it’s a statement of raw, industrial elegance.
Whether you are lining up for a local TT, a long-distance triathlon, or simply want to turn your road bike into a high-speed interceptor, these wheels are your ticket to a new personal best.
Stop fighting the air. Start cutting through it.
Aero Performance 80mm Carbon Disc Wheelset
Elevate your speed and dominate the flats with our high-profile 80mm Carbon Wheelset. Engineered specifically for Time Trial (TT) specialists and road racers, this wheelset balances aggressive aerodynamics with modern stability.
Key Features
-
Aerodynamic Mastery: The 80mm deep U-V shape rim profile slices through the wind, providing a significant “sail effect” in crosswinds and reducing drag at high speeds.
-
Advanced Carbon Layup: Constructed with a blend of T700 and T800 carbon fiber, these rims offer high lateral stiffness for power transfer while remaining lightweight and durable.
-
Modern Rim Geometry: Available in 28mm or 34mm outer widths, these rims are optimized for tubeless-ready setups and wider tires (28mm–40mm), ensuring lower rolling resistance and improved comfort.
-
Stealth Aesthetics: The UD paintless matte finish combined with black glossy stickers provides a sleek, “stealth” look that complements any high-end frame.
-

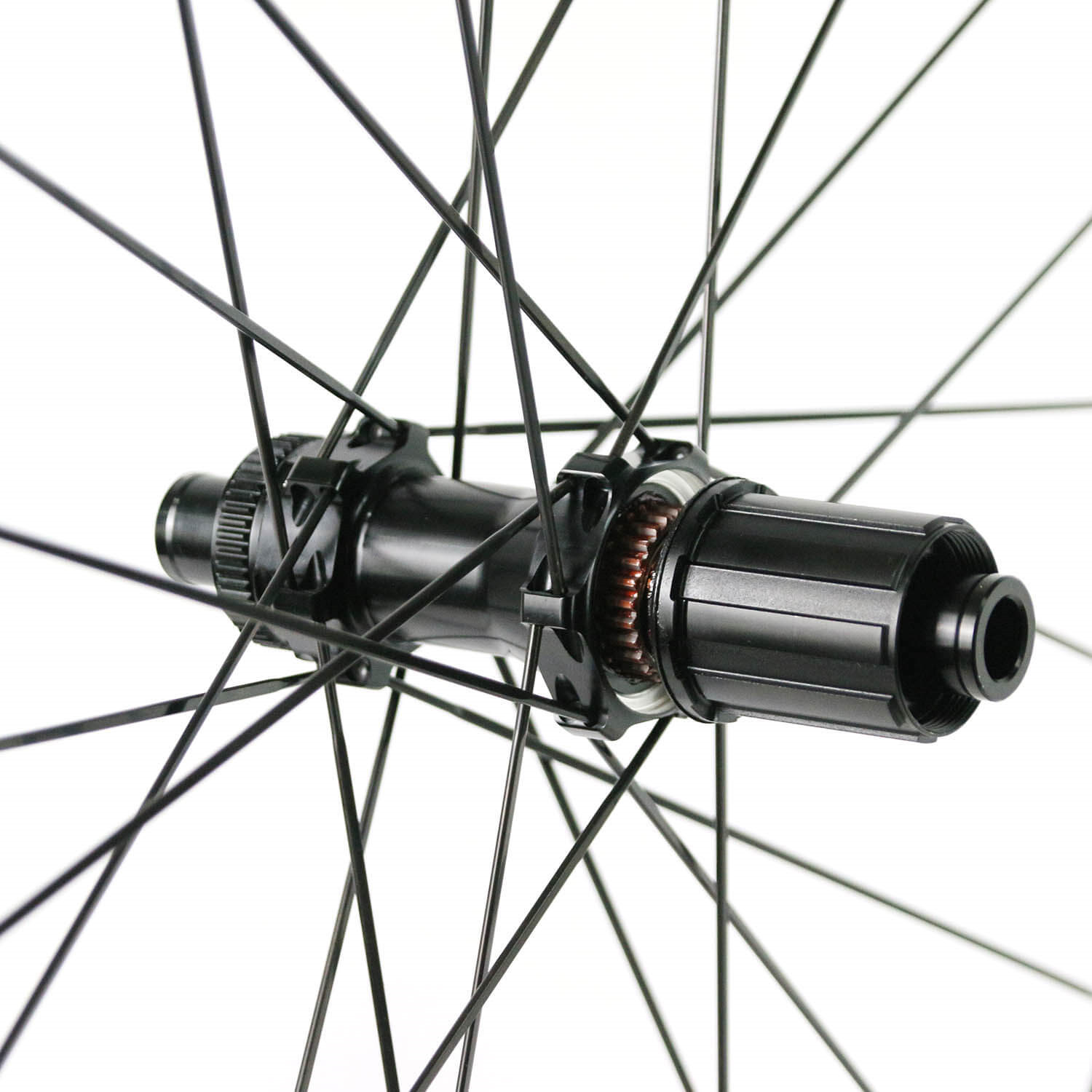

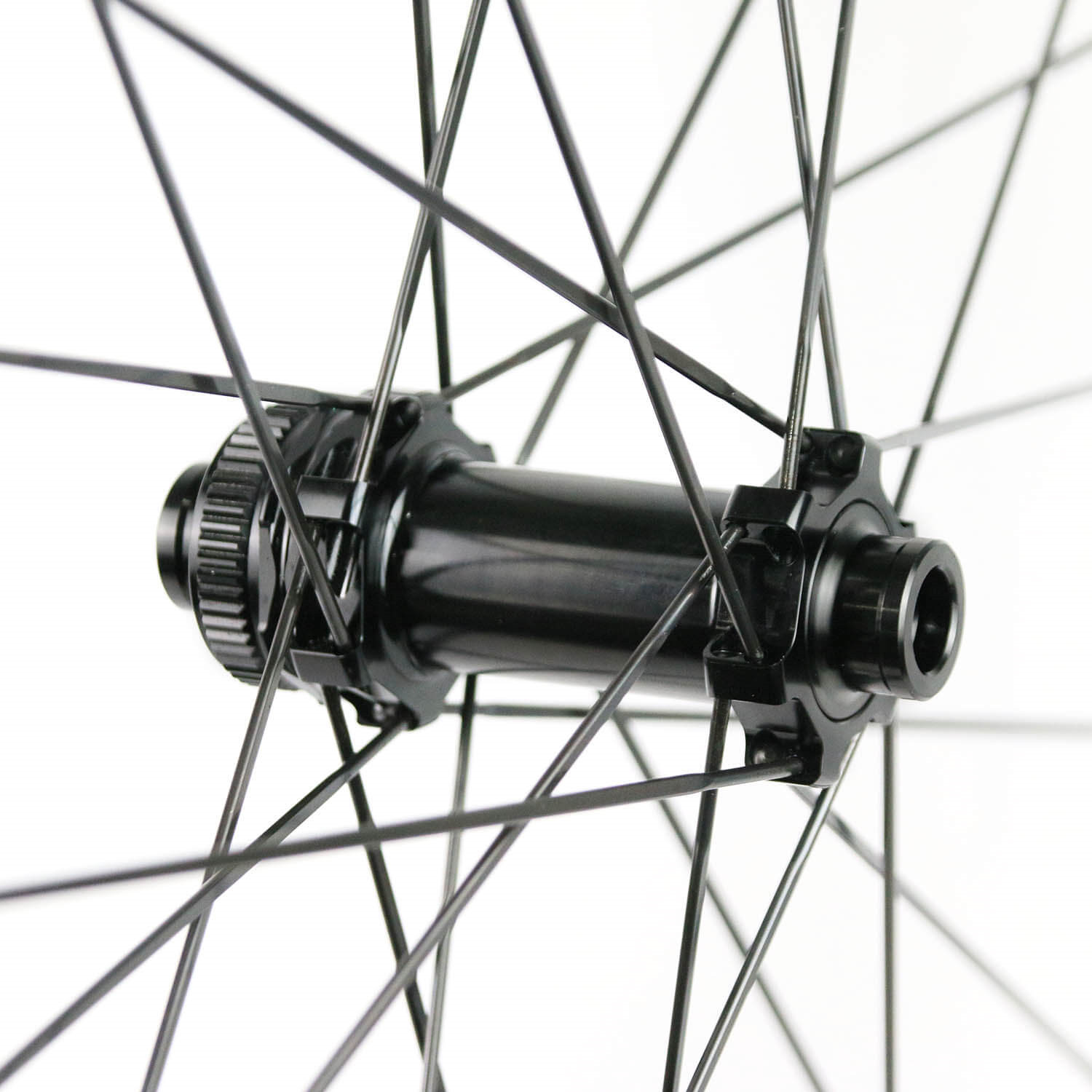

Reliable Engagement: Equipped with SR325 hubs and S&S steel bearings, providing a smooth, dependable roll and compatibility with Shimano 8-12 speed or SRAM XDR drivetrains.
Feature Details Material Carbon Fiber T700 + T800 Depth / Width 80mm / 23mm Inner (34mm Outer) or 21mm Inner (28mm Outer) Brake Type Disc Brake Hubs SR325 (100x12mm / 142x12mm) Bearings S&S Precision Steel Spoke Count 24H Front / 24H Rear Weight Limit 110kg / 242 lbs Compatibility Tubeless-ready; Shimano 8-12s / SRAM XDR Warranty 2 Years
| Weight | 4 kg |
|---|---|
| Dimensions | 84 × 20 × 68 cm |
| Rims inner |
21mm Hooked ,23mm Hooked |
| Spoke |
Pillar Wing 20 ,Sapim cx-leader ,Sapim cx-ray |
| Freehub |
HG ,XDR |
Packaging Specifications
All products are secured in heavy-duty, 5-ply double-wall corrugated fiberboard containers. With a total thickness of 5mm, these reinforced cartons offer superior structural integrity and high compression resistance to ensure product safety during transit.
Dimensional Data & Weight:
Bicycle Rims (2 units): 68 x 10 x 68 cm | 2 kg
Bicycle Wheelset (1 pair): 84 x 20 x 68 cm | 4 kg
Bicycle Wheelsets (2 pairs): 84 x 35 x 68 cm | 7 kg
Logistics Optimization: Please be advised that the shipment of two pairs of wheelsets yields the most favorable freight-to-weight ratio, providing a more economical shipping solution.
