Carbon Wavy Rims 700C UD Marble Matt Road Bicycle Wheelset Rim 60mm 55mm deep 29mm wide
$159.00
Serenade bike-carbon wheels carbon rim carbon wheelset,carbon mountain bike,carbon road bike Store
Rims model: TRF6055S
Braking System: Rim Brake and Disc
Applicable Bicycle: Road Bicycles, Fixed gear, Time trial
Appearance: UD/3K/12K, Marble
Finishing: Matte/Glossy
Material: Full carbon fiber (Toray T700 + T800 )
Spoke Hole: 24H
Outer width: 29mm
Inner width: 22mm, Clincher
Depth: 60mm
ERD: 530mm

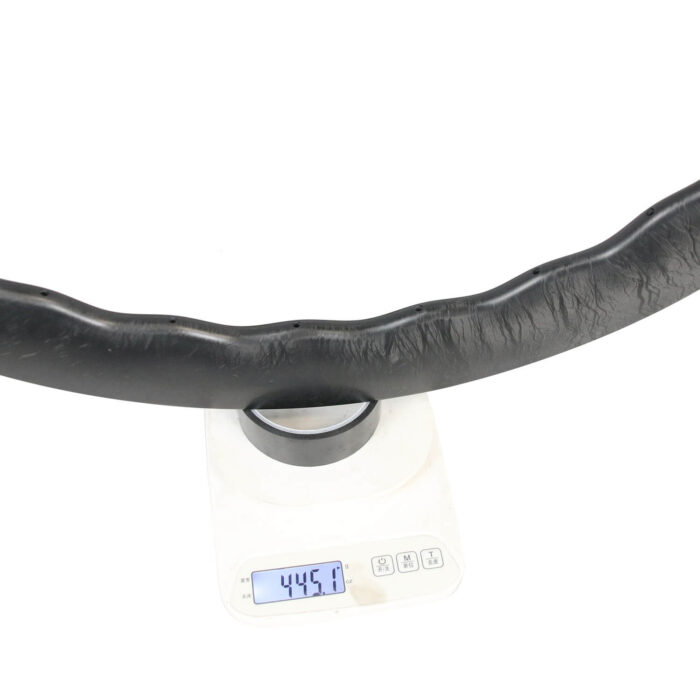

Weight: Clincher 445 +/-15 gr, Tubular 420+/-15 gr
Type: Clincher, Tubeless compatible, Tubular
Standard: En Standard
Assembly Hole Dia: 8.5mm
Spoke Hole Dia: 4.5mm
Valve Hole Dia: 6.5mm
Roundness: <0.25mm
Flatness:<0.15mm
Max Spoke Tension:>350kgf
Weight limitㄩ<100kg
The new TRF6055S is a rim designed to enhance vehicle performance, featuring several notable characteristics and advantages:
Size and Design:

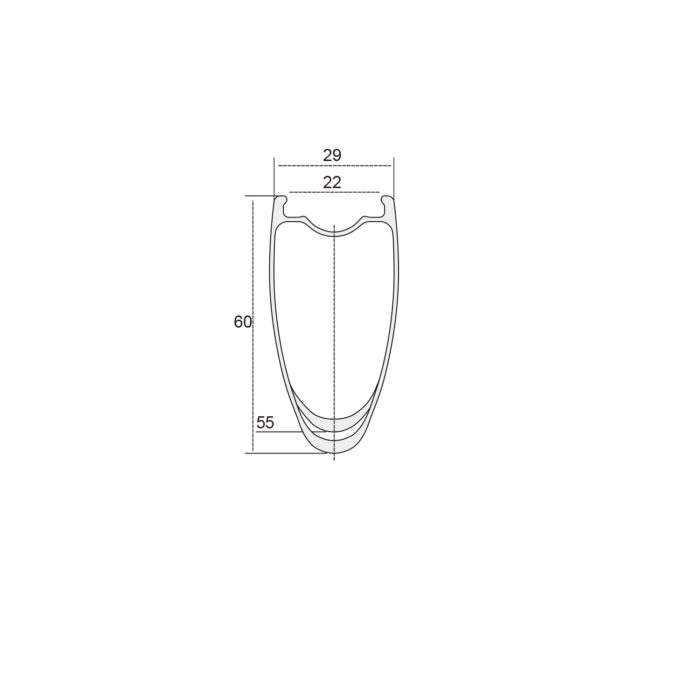

This rim has a height of 60mm, with a height of 55mm at the wavy design area. This design provides an appealing appearance and helps reduce the overall weight. The wavy design may indicate that the rim has undergone special weight-reduction treatments at the contour or edge, a design commonly found in rims aimed at performance optimization.
Performance Testing:
After extensive testing, this rim has demonstrated characteristics of speed, lightweight design, and high rigidity. These are key indicators of rim performance, crucial for drivers who prioritize speed and handling.
Speed Capability:
This rim can support the vehicle reaching speeds of up to 60km/h. Although a vehicle’s top speed is influenced by various factors, including engine performance, vehicle weight, and design, the rim’s design and quality are also significant contributors. A high-quality rim can provide better acceleration, stability, and responsiveness, enhancing the vehicle＊s top speed to some extent.
In summary, the design and performance test results of the TRF6055S rim indicate that it is a visually appealing, lightweight, and high-performance rim, particularly suited for vehicles and drivers who seek speed and performance. However, specific performance experiences need to be evaluated in conjunction with other vehicle configurations and individual driving habits.
Here you can find many different types of bicycle parts.
Pick up: Mtb carbon rims, Mtb carbon wheels. Road bicycle rims. Road bike wheelset.
| Weight | 1 kg |
|---|---|
| Brake system |
Disc |
| Rims type |
Hooked |
| Holes |
24H |
| Carbon fiber weave |
Marble ,UD |
| Finish |
Glossy ,Matt |
Packaging Specifications
All products are secured in heavy-duty, 5-ply double-wall corrugated fiberboard containers. With a total thickness of 5mm, these reinforced cartons offer superior structural integrity and high compression resistance to ensure product safety during transit.
Dimensional Data & Weight:
Bicycle Rims (2 units): 68 x 10 x 68 cm | 2 kg
Bicycle Wheelset (1 pair): 84 x 20 x 68 cm | 4 kg
Bicycle Wheelsets (2 pairs): 84 x 35 x 68 cm | 7 kg
Logistics Optimization: Please be advised that the shipment of two pairs of wheelsets yields the most favorable freight-to-weight ratio, providing a more economical shipping solution.
