Electric Bike Wheels For 29er Mountain Bike All Mountain Cycling Rim 36mm Wide 30mm Depth

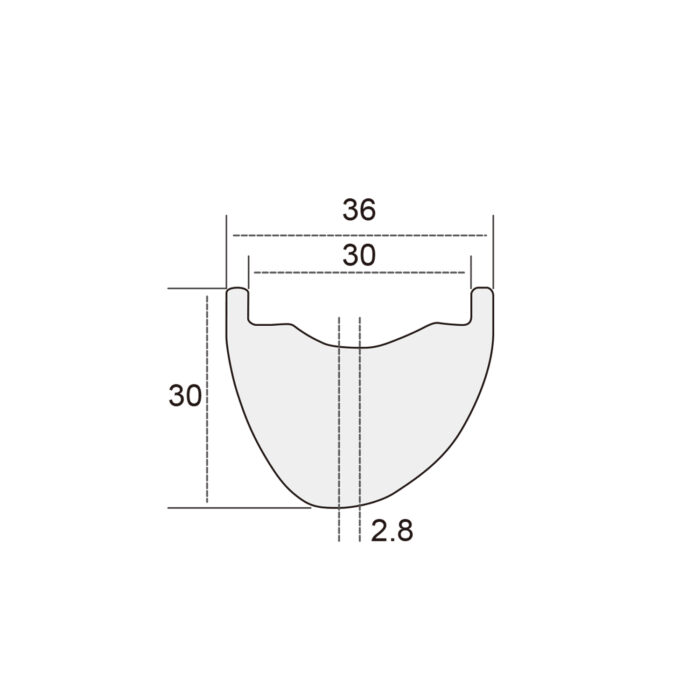

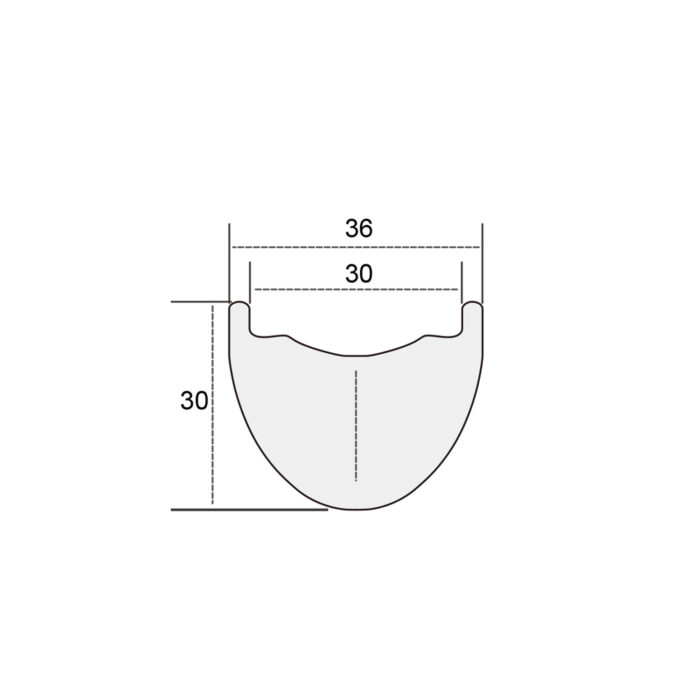

The TMC936 is a symmetrical electric bike wheel designed specifically for 29er mountain bikes used in all mountain cycling. It features a wide rim, measuring 36mm in width, with a depth of 30mm.
On the other hand, the TME936 is similar to the TMC936 but has a slight offset of 2.8mm.
The XC variant of these wheels weighs 390 grams, making it lightweight and ideal for E-bikes and all mountain biking. However, the AM and electric bike versions are slightly heavier, weighing 460 grams. These wheels are primarily intended for use with E-bikes and all mountain bikes.
Specifications:
Application: XC / AM
Wheel Size: 29″
Tyre Type: clincher/tubeless
Tubeless: Ready
Number of Spokes: 28, 32, 36
Brake Type: disc only
Tubeless System: Tubeless Ready
Technical Information:
Type: hookless
Dimensions (ETRTO): 30-584
Inner Width: 30 mm
Outer Width: 36 mm
Depth: 30 mm
ERD:580mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: carbon
Rim weight:
XC 390+/-15gr, AM 460+/-15gr
Approved For:
Weight Limit: 115 kgs, AM
| Weight | 1 kg |
|---|---|
| Carbon fiber weave |
3k twill ,UD |
| Rims model |
TMC936 ,TME936 |
| Weight |
AM 460㊣15g ,XC 380㊣15g |
| Holes |
28H ,32H ,36h |
| Finished |
Glossy ,Matt |
Packaging Specifications
All products are secured in heavy-duty, 5-ply double-wall corrugated fiberboard containers. With a total thickness of 5mm, these reinforced cartons offer superior structural integrity and high compression resistance to ensure product safety during transit.
Dimensional Data & Weight:
Bicycle Rims (2 units): 68 x 10 x 68 cm | 2 kg
Bicycle Wheelset (1 pair): 84 x 20 x 68 cm | 4 kg
Bicycle Wheelsets (2 pairs): 84 x 35 x 68 cm | 7 kg
Logistics Optimization: Please be advised that the shipment of two pairs of wheelsets yields the most favorable freight-to-weight ratio, providing a more economical shipping solution.
