TRF50S 50mm deep 28mm wide lightweight road bicycle carbon rims
Price range: $125.00 through $139.00
Serenade bike-carbon wheels carbon rim carbon wheelset,carbon mountain bike,carbon road bike Store
Rims model: TRF50S
Braking System: V Brake and Disc
Applicable Bicycle: Road Bicycles
Appearance: UD/3K/12K
Finishing: Matte/Glossy
Material: Full carbon fiber (Toray T700 + T800 )
Spoke Hole: 16H-36H

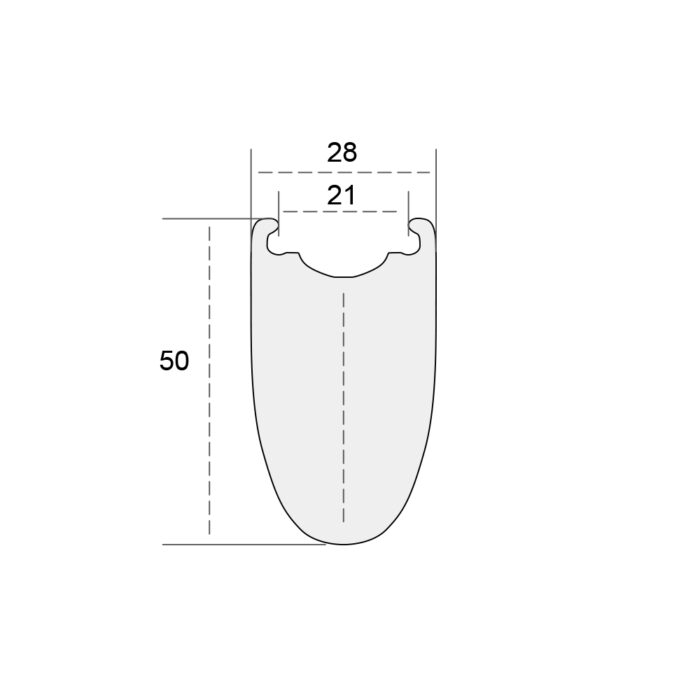

Outer width: 28mm
Inner width: 21mm
Depth: 50mm
ERD: 540mm
Weight: 430 +/-15 gr ( Flyweight Clincher )
490 +/-15 gr ( Standard Clincher )
350 +/-15 gr ( Flyweight tubular )
385 +/-15 gr ( Standard tubular )
Type: Clincher, Tubeless compatible
Standard: En Standard
Assembly Hole Dia: 8.5mm
Spoke Hole Dia: 4.5mm
Valve Hole Dia: 6.5mm
Roundness: <0.25mm
Flatness:<0.15mm
Max Spoke Tension:>350kgf
Weight limitㄩ<100kg
| Weight | 1 kg |
|---|---|
| Tire |
Clincher ( Tubeless ready ) ,Tubular |
| Brake |
Disc ,Rim brake |
| Weave |
3k twill ,UD |
| Holes |
18H ,20H ,21H ,24H ,28H |
| Finish |
Glossy ,Matt |
Packaging Specifications
All products are secured in heavy-duty, 5-ply double-wall corrugated fiberboard containers. With a total thickness of 5mm, these reinforced cartons offer superior structural integrity and high compression resistance to ensure product safety during transit.
Dimensional Data & Weight:
Bicycle Rims (2 units): 68 x 10 x 68 cm | 2 kg
Bicycle Wheelset (1 pair): 84 x 20 x 68 cm | 4 kg
Bicycle Wheelsets (2 pairs): 84 x 35 x 68 cm | 7 kg
Logistics Optimization: Please be advised that the shipment of two pairs of wheelsets yields the most favorable freight-to-weight ratio, providing a more economical shipping solution.
