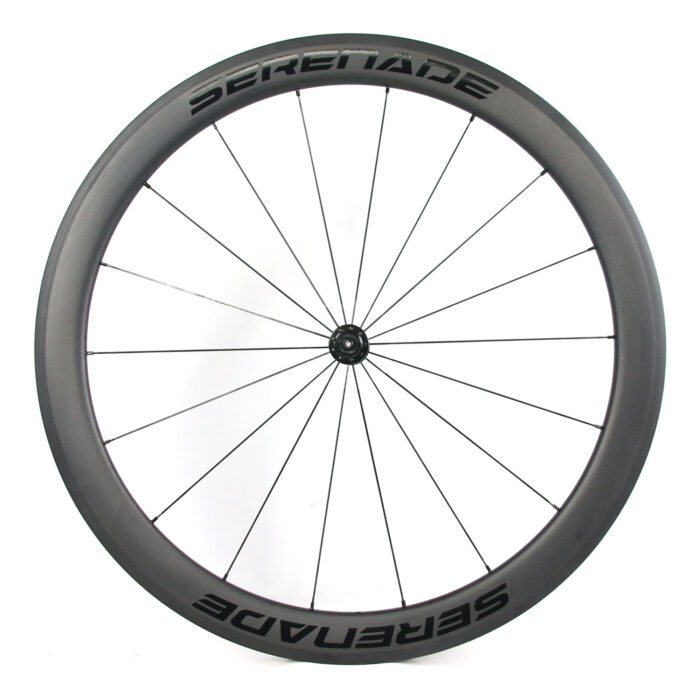

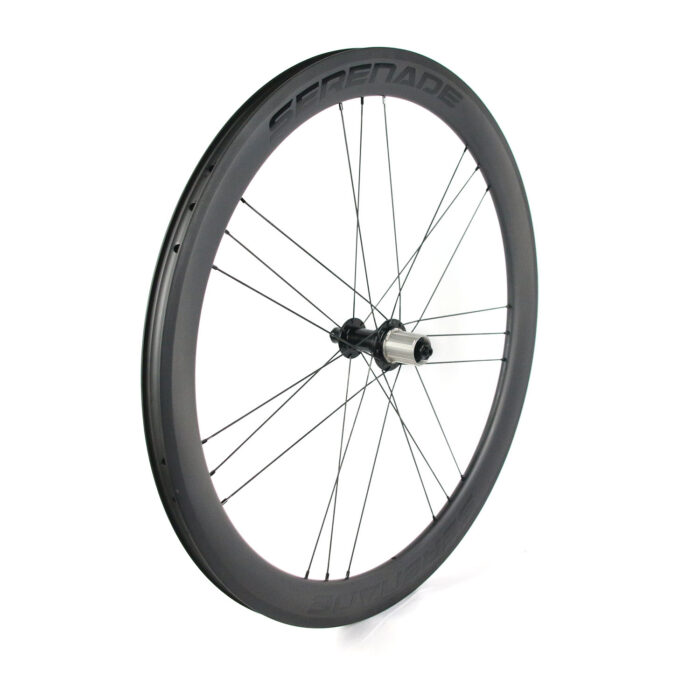

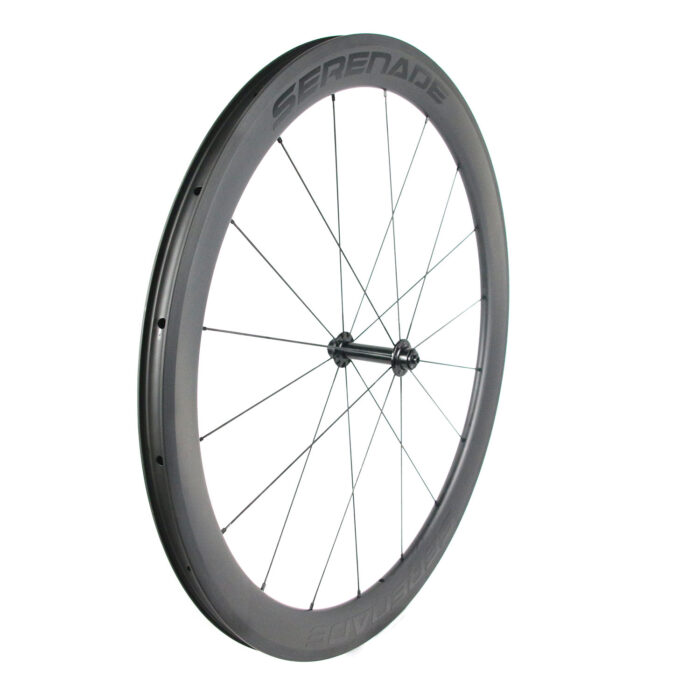

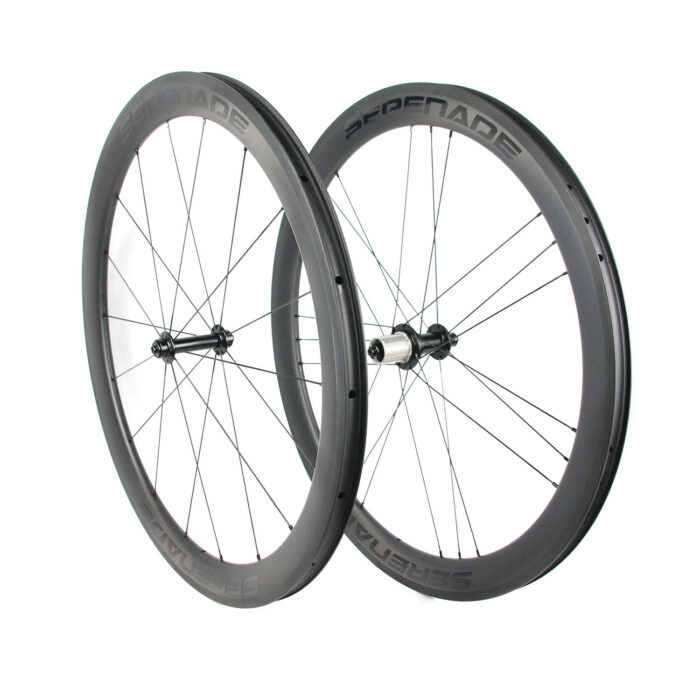

G3 Weave 50mm Carbon Road Bike Wheelset Clincher Rim Brake Power way R13 Hub
Price range: $369.00 through $479.00
Serenade bike-carbon wheels carbon rim carbon wheelset,carbon mountain bike,carbon road bike Store
G3 Weave 50mm Carbon Road Bike Wheelset Clincher Rim Brake Power way R13 Hub
Rims
Model: 50mm clincher
Hooked profile carbon fiber rims
External width: 25mm
Internal rim width: 18mm
Depth: 50mm
Carbon fiber weave: UD, 3k Twill
Material: Toray T800, T700
ERD: 540mm
Holes: Front 18H, Rear 21H(G3)
Rim Weight: 430+/-15gr flyweight clincher, 370+/-15gr Tubular

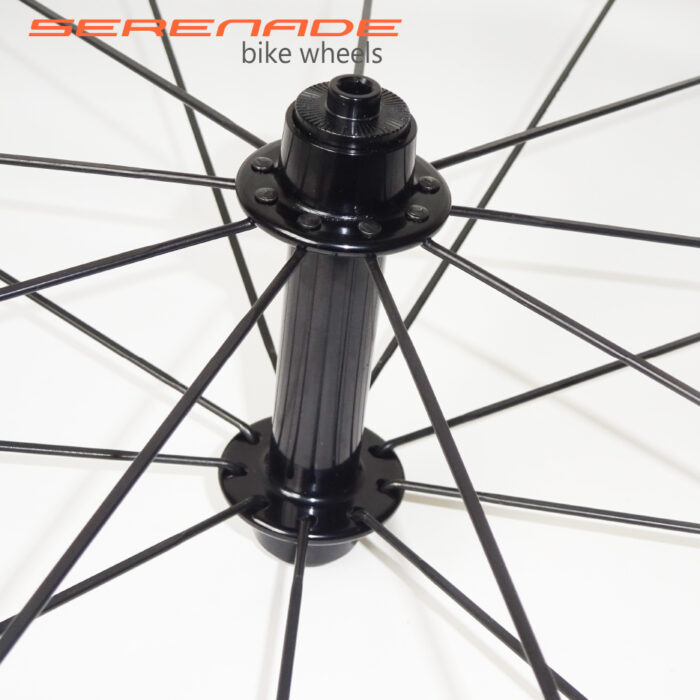

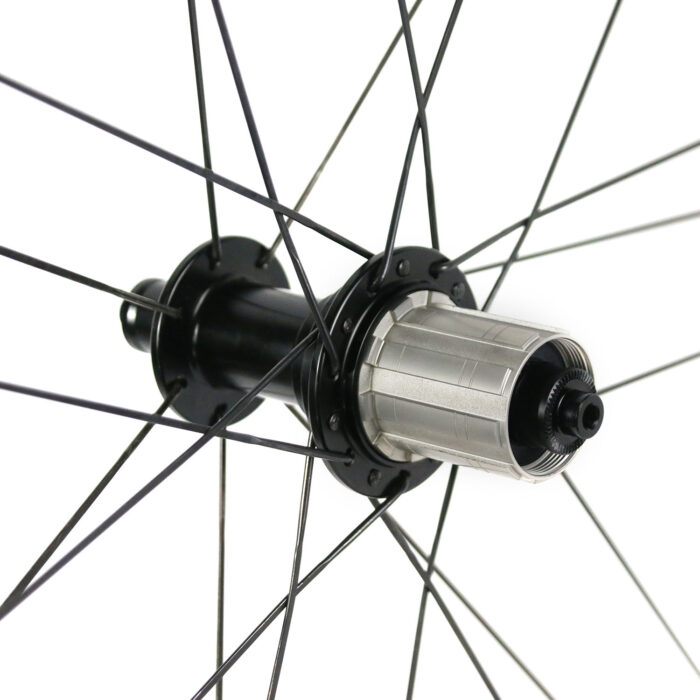

Hubs:
Model: Power way R13
100 x 5mm, 130 x 5mm
Brake mount: Rim brake
Pawls: 3
Freewheel: Shimano, Sram XDR
Spoke:
Sapim cx-ray
Pillar 1420
Pillar 1423
Lacing: front crossed 1, rear G3
Tire: UST Tubeless and tubetype
Weight:
Clincher
With Sapim cx-ray 1,320g +/- 5%
With Pillar 1420 1,320g +/- 5%
With Pillar 1423 1,400g +/- 5%
Tubular
With Sapim cx-ray 1,220g +/- 5%
With Pillar 1420 1,220g +/- 5%
With Pillar 1423 1,290g +/- 5%
Include:
Tubeless tape, Valve, 2 Spare spokes, and nipples.
| Weight | 1 kg |
|---|---|
| Rim Wide |
25mm wide Clincher ,25mm wide Tubular ,28mm wide Clincher ,28mm wide Tubular |
| Carbon fiber weave |
3k twill ,UD |
| Freebody |
Shimano 11S |
| Spoke |
Pillar 1420 ,Pillar 1423 ,Sapim cx-ray |
You must be logged in to post a review.
Packaging Specifications
All products are secured in heavy-duty, 5-ply double-wall corrugated fiberboard containers. With a total thickness of 5mm, these reinforced cartons offer superior structural integrity and high compression resistance to ensure product safety during transit.
Dimensional Data & Weight:
Bicycle Rims (2 units): 68 x 10 x 68 cm | 2 kg
Bicycle Wheelset (1 pair): 84 x 20 x 68 cm | 4 kg
Bicycle Wheelsets (2 pairs): 84 x 35 x 68 cm | 7 kg
Logistics Optimization: Please be advised that the shipment of two pairs of wheelsets yields the most favorable freight-to-weight ratio, providing a more economical shipping solution.
