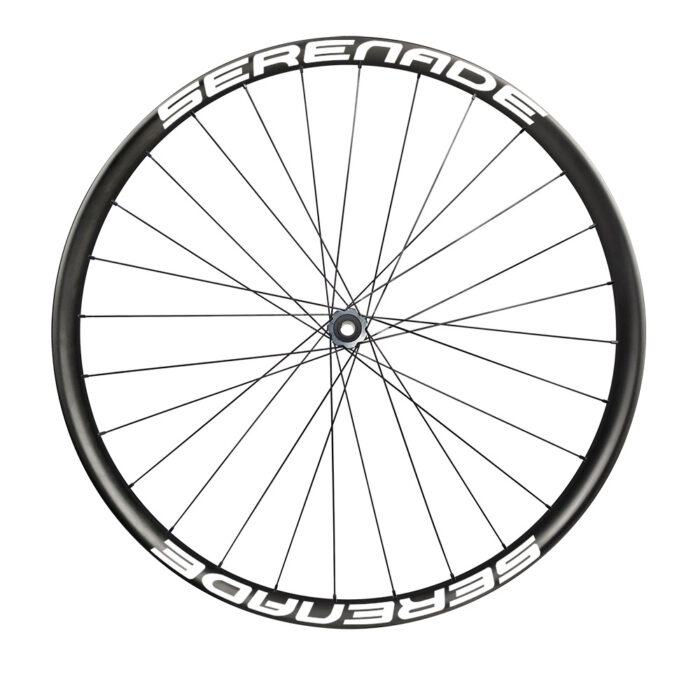

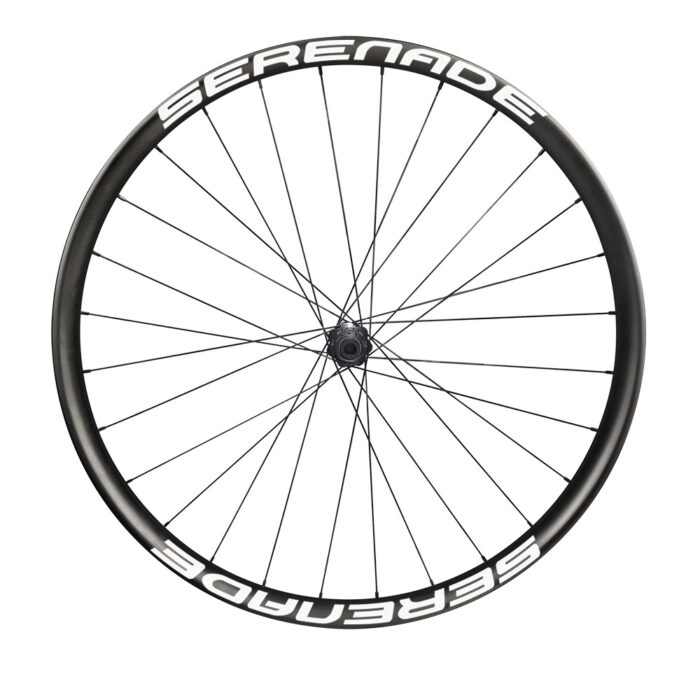

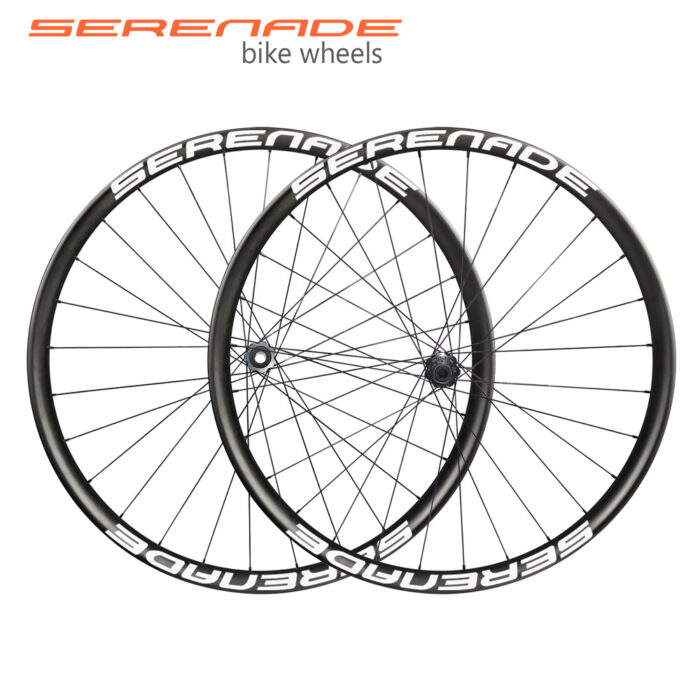

1250gr Boost 29er Xc Ultra Light Carbon 36mm Wide Disc Brake Mountain Bike Wheelset

Serenade bike-carbon wheels carbon rim carbon wheelset,carbon mountain bike,carbon road bike Store

M80 hub with TME9236 Carbon rims

The profiles of the rims have been specially developed for tubeless use. They guarantee a perfect fit and make the installation of the tire as easy as possible. Nevertheless, it is always possible to use a conventional combination of tire and tube.

The spoke nipples prevent the spoke-nipple connection from loosening on its own. the two-component adhesive is injected into the nipple thread, which enables the construction of extremely durable wheels. As soon as the nipples are screwed in, the adhesive is activated and then hardens completely. Repeated re-centering is possible without any problems, whereby the adhesive strength decreases slightly with each re-centering.

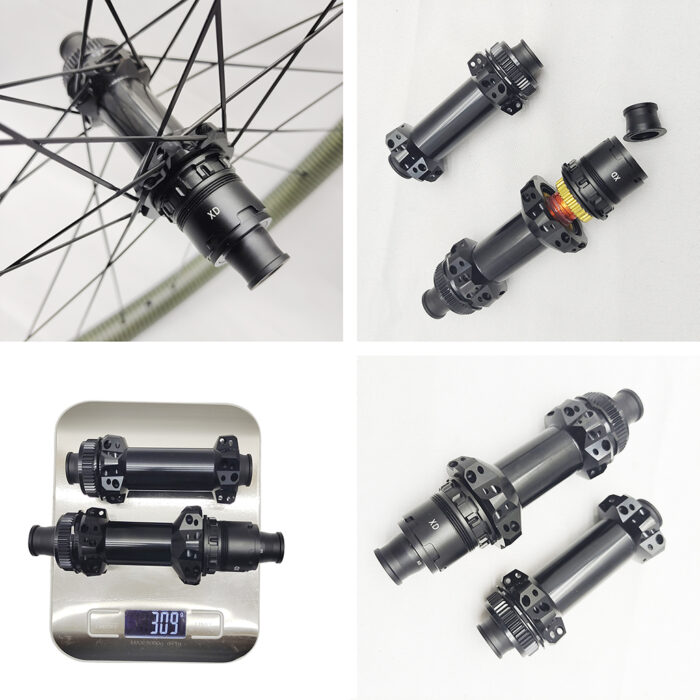

The Serenade M80 hub is  Ratchet 36T. Center lock Boost version 28H, Straight pull Front 100 x 15mm, rear 148 x 12mm, Only 308 gr

What makes the Ratchet System hubs superior is the fact that all teeth on each of the ratchets engage simultaneously every time. In the case of pawl hubs, the engagement surface area is rather small. With the Ratchet System, the whole front face engages, creating much smaller point loads. The result is the legendary reliability of the Ratchet System hubs.

The Wheel Description:

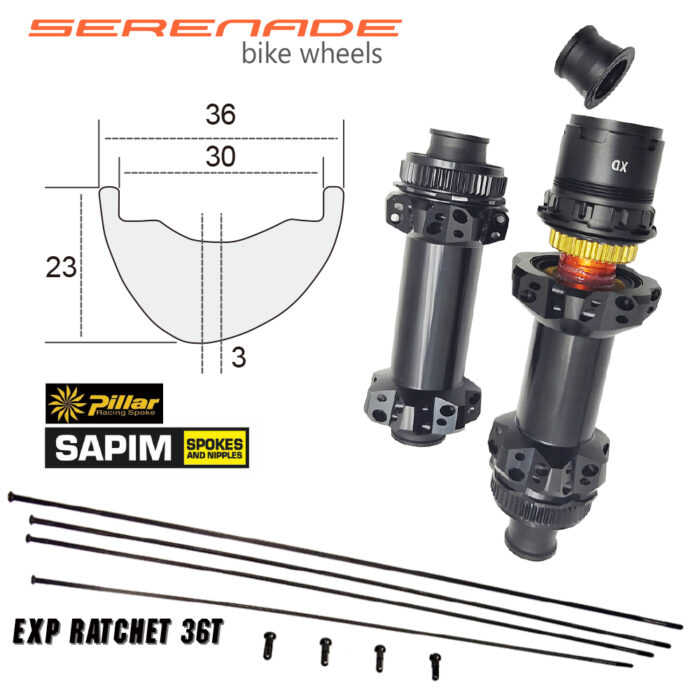

Mode: TME9236

Rim external wide: 36mm

Rim internal wide: 30mm

Rim depth: 23mm

Carbon fiber weave: UD

ERD: 594mm

Offset: 3mm

Hub:

Serenade M80

Front: 110 x 15mm

Rear: 148 x 12mm

Holes: 28H

Freebody: Shimano 11S / Sram XD / Micro spline

Spoke:

CN 424, Pillar 1420, Sapim cx-ray

Nipples:

CN nipples 14mm black

Wheelset

Weight: 1250+/-5%

Tire:

29er 2.2″- 2.7″

Max Tire Pressure:

40psi/ 2.75bar

What include:

2 Spare spoke, Tubeless tape,

Warranty:

2-year free repair.

Featuresㄩ

1. Paintless carbon rims.

2. Asymmetric carbon fiber bike rim shape
